SKU:
PR515224

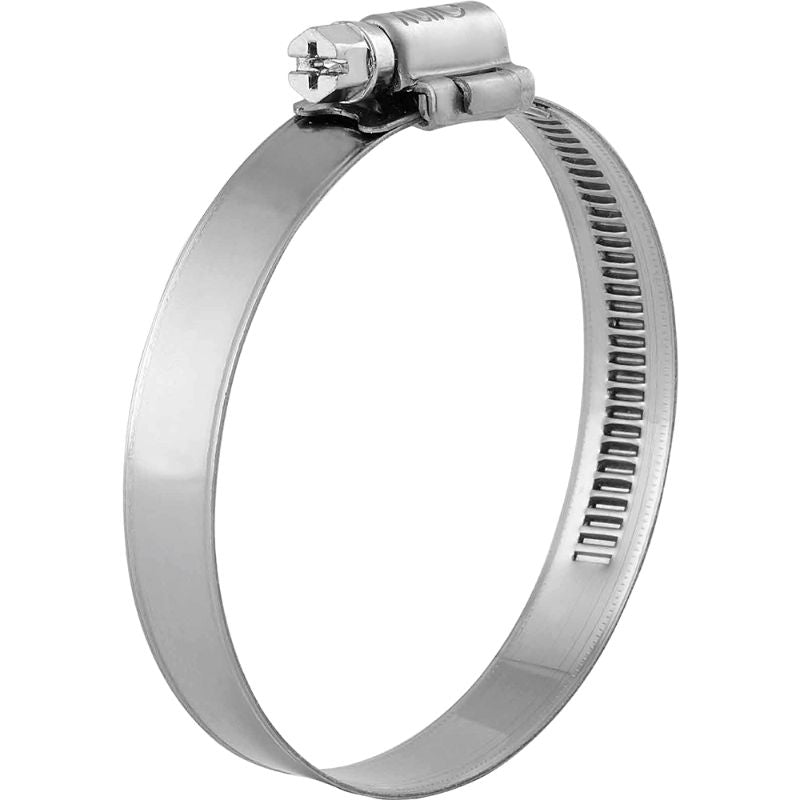

Kale WD12 70-90mm W4 (Ea)
$6.70
Unit price
/
Unavailable
WD127090W4 - 12mm Band Width Worm Drive Clamp WD12 | 70-90mm capacity | W4 Features:
Light product easy assembly and space saving with compact housing and screw design.
Stronger and durable with the mechanically locked single piece design of housing.
Burr-free and convex band edges.
100% traceability on the product.
Higher tightening torque and clamping force with 12mm band width.
High clamping force with low tightening torque. Technical Spec:
Band Width - 12mm
Capacity (min - max) - Ĺ 70-90mm
Tightening Torque (max) - 5.0Nm (1)
Screw Housing Length - 24mm
Grade W4 - Stainless Screw Band & Housing (2)
Corrosion Resistance (min.Hour) IS0 9227 - 240
Screw Head - FL | 7mm Hex (1) Recommended tightening torque. Recommended tightening speed 300 - 350 rpm (2) Screw - 1.4567 Stainless DIN EN-10088-3 or equivalent | Housing & Band - 1.4301 Stainless DIN EN-10088-2 or equivalent KALE is certified with ISO TS 16949 ISO 9001 ISO 14001 management systems as per the expectations of the global automotive industry.
This product is in stock in NZ which means no unexpected import charges, custom duty or tax. This product has FREE shipping however combined shipping for other products is not available with this item.
Light product easy assembly and space saving with compact housing and screw design.
Stronger and durable with the mechanically locked single piece design of housing.
Burr-free and convex band edges.
100% traceability on the product.
Higher tightening torque and clamping force with 12mm band width.
High clamping force with low tightening torque. Technical Spec:
Band Width - 12mm
Capacity (min - max) - Ĺ 70-90mm
Tightening Torque (max) - 5.0Nm (1)
Screw Housing Length - 24mm
Grade W4 - Stainless Screw Band & Housing (2)
Corrosion Resistance (min.Hour) IS0 9227 - 240
Screw Head - FL | 7mm Hex (1) Recommended tightening torque. Recommended tightening speed 300 - 350 rpm (2) Screw - 1.4567 Stainless DIN EN-10088-3 or equivalent | Housing & Band - 1.4301 Stainless DIN EN-10088-2 or equivalent KALE is certified with ISO TS 16949 ISO 9001 ISO 14001 management systems as per the expectations of the global automotive industry.
This product is in stock in NZ which means no unexpected import charges, custom duty or tax. This product has FREE shipping however combined shipping for other products is not available with this item.
