SKU:
PR702882

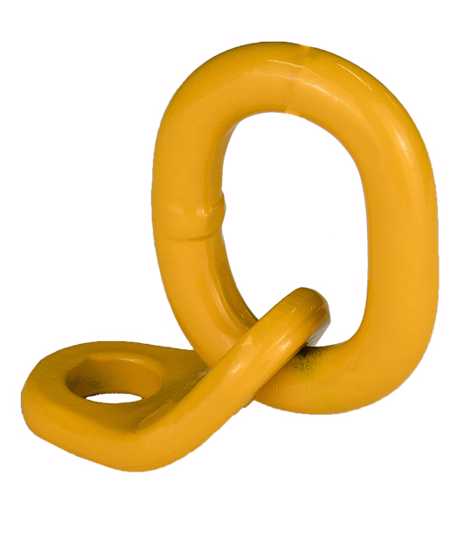

Bullivants Link Bracket M16, 1.8T (Each)
$68.20
Unit price
/
Unavailable
Upgrade your lifting equipment with the Bullivants Link Bracket M16, 1.8T. Designed for efficiency and safety, these high-quality link brackets are ideal for lifting components during maintenance and repairs. Unlike standard eye bolts, our link bracket assemblies require less clearance, making them a perfect choice for tight spaces. With a Working Load Limit (WLL) of 1.82T, these brackets provide reliable support for swing gears and bearings, ensuring faster and easier positioning during your projects. Crafted with a robust Bolt Grade of 8.8, the Bullivants Link Bracket adheres to industry standards, complying with ANSI/ASME B30.9.1984. Whether you're in construction, manufacturing, or maintenance, you can trust the Bullivants Link Bracket for its durability and performance. Technical specifications include: Mfr No. WLIB-160-R-LT081302, Minimum Bolt Diameter of M16, and critical dimensions of 43mm for Dimension A, 27mm for Dimension B, and 8.5mm for Dimension E. Enhance your lifting operations with the Bullivants Link Bracket M16, 1.8T, available now at Smartfox NZ!
Link bracket assemblies are usually used to lift components during maintenance and repairs of equipment.
Requires less clearance than standard eye bolts
Allows for faster and easier positioning of swing gear/ bearing
Bolt Grade 8.8
Complies with ANSI/ASME B30.9.1984

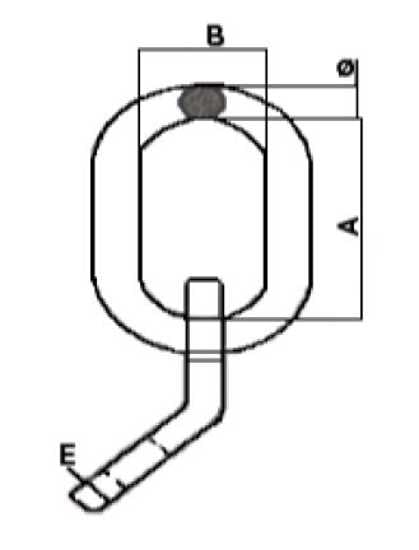

TECHNICAL SPECIFICATIONS
Mfr No. WLIB-160-R-LT081302
Minimum Bolt Diameter M16
WLL 1.82T
Dimension A 43mm
Dimension B 27mm
Dimension E 8.5mm
Link bracket assemblies are usually used to lift components during maintenance and repairs of equipment.
Requires less clearance than standard eye bolts
Allows for faster and easier positioning of swing gear/ bearing
Bolt Grade 8.8
Complies with ANSI/ASME B30.9.1984
TECHNICAL SPECIFICATIONS
Mfr No. WLIB-160-R-LT081302
Minimum Bolt Diameter M16
WLL 1.82T
Dimension A 43mm
Dimension B 27mm
Dimension E 8.5mm
