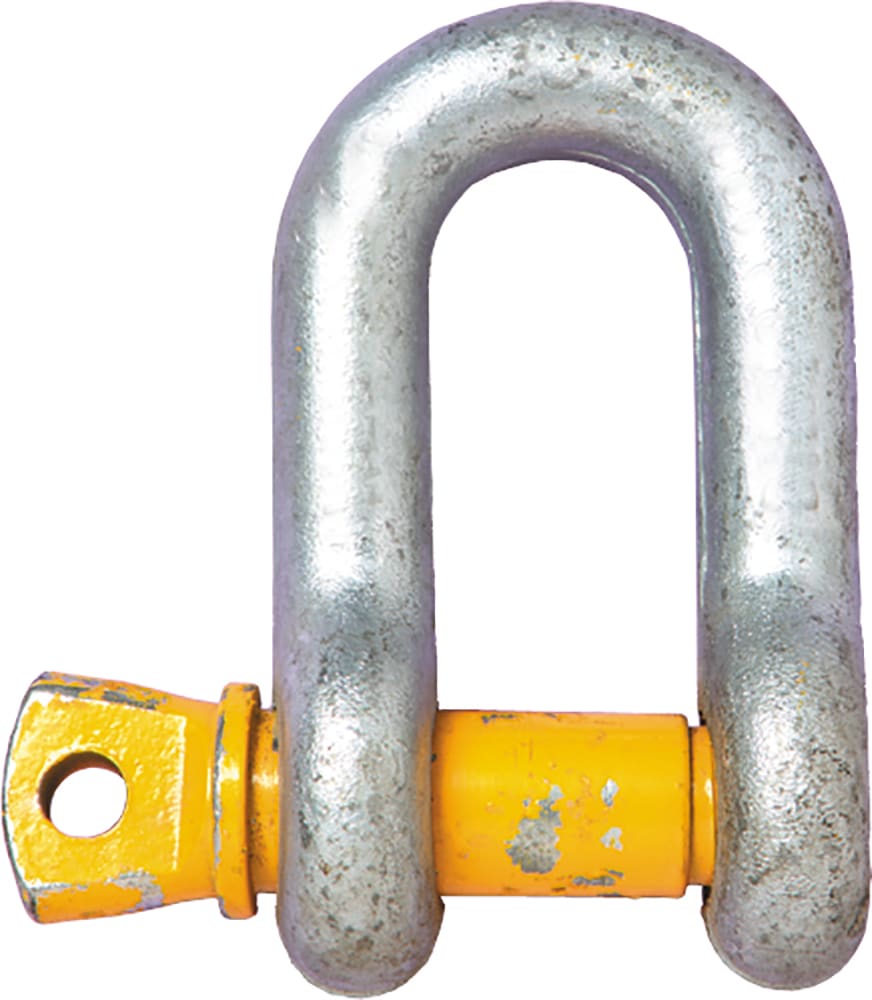

Bullivants Dee Shackle Screw Pin 4.70T WLL 19mm Body Diameter (Each)

Introducing the Dee Shackle 22mm Pin 4.70T WLL, your reliable partner for heavy-duty lifting and rigging applications. This durable dee shackle is engineered for strength and versatility, making it ideal for various tasks including industrial, marine, and construction settings. With a Working Load Limit (WLL) of 4.70 tonnes, this screw pin shackle is perfectly suited for a direct connection to the load in non-permanent applications. Its robust design, made from high-quality Alloy Grade S Galvanised material, ensures longevity and resistance to corrosion. Each dee shackle comes individually stamped with its WLL for clear identification and safety compliance. The dimensions are as follows: pin diameter (d) 19mm, shackle diameter (D) 22mm, width (W) 32mm, length (L) 60mm, and inside width (e) 48mm. This shackle adheres to Australian Standard AS 2741:2002, ensuring it meets rigorous safety and quality requirements. Whether you need a reliable shackle for lifting chains, wire ropes, or synthetic slings, the Dee Shackle 22mm is your go-to choice for heavy lifting tasks. Note that the image provided is for representation purposes only; the actual product may differ slightly. Shop now at Smartfox NZ and enhance your lifting efficiency with this essential dee shackle!

Dee Shackle 22mm Pin 4.70T WLL
Dee shackle suitable for 1 direct connection to the load
Screw pin shackle for use in non-permanent applications
Suitable for various lifting in conjunction with chain, wire rope and synthetic sling applications
Individually stamped with the Working Load Limit (WLL) in tonnes
Complies with AS 2741:2002
Image for representation purposes only, actual product may differ

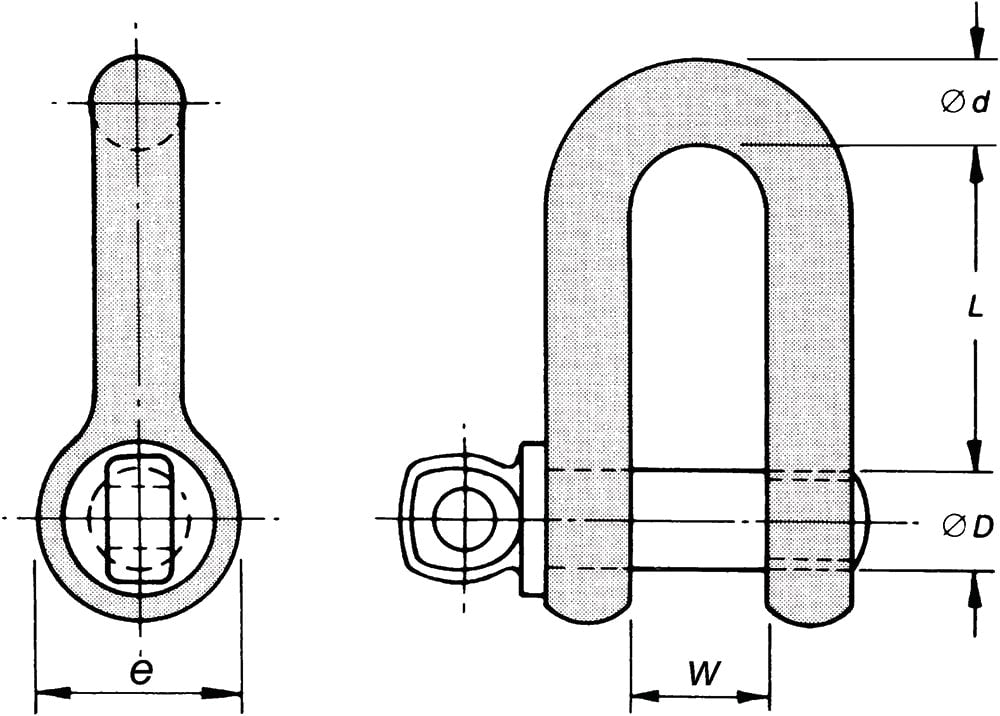

TECHNICAL SPECIFICATIONS
Material Alloy Grade S Galvanised
WLL 4.70t
d 19mm
D 22mm
W 32mm
L 60mm
e 48mm
