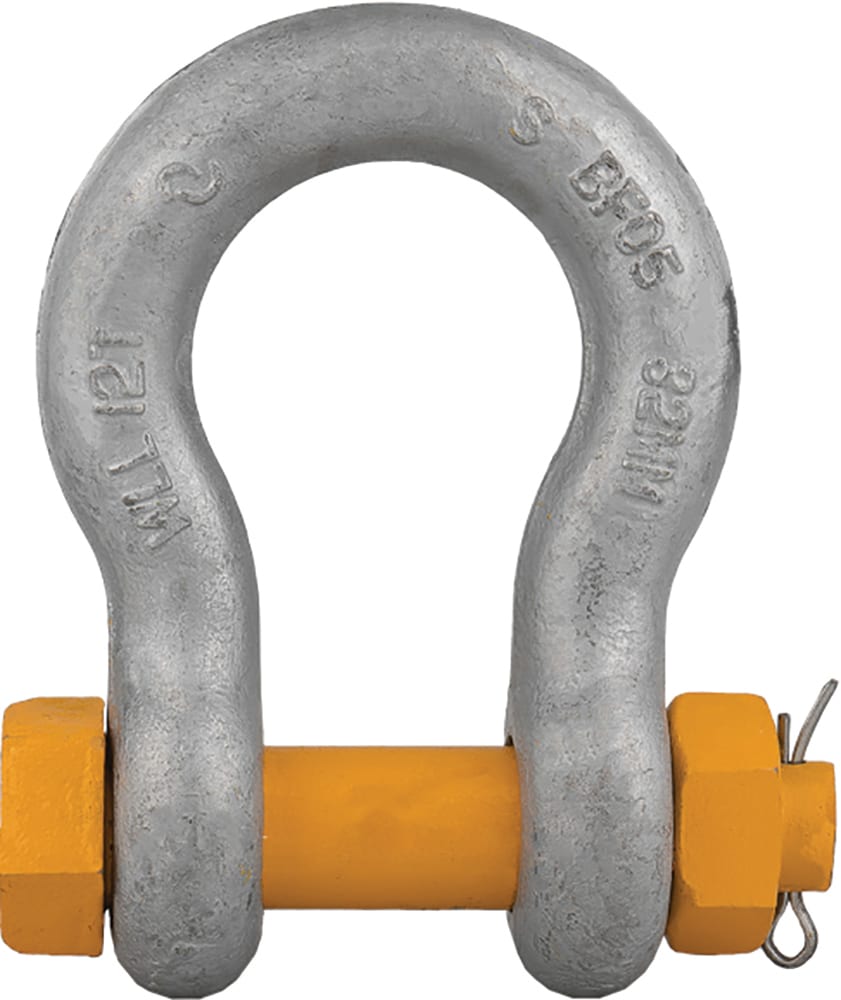

Bullivants Bow Shackle Safety Pin 4.7T WLL 19mm Body Diameter (Each)

Introducing the Bullivants Safety Bow Shackle 4.7T, your ultimate solution for secure lifting and load management. Designed to handle a Working Load Limit (WLL) of 4.7 tonnes, this bow shackle is a must-have for heavy-duty applications. Featuring a robust and durable alloy Grade S construction, our galvanised shackle is engineered to excel in various lifting scenarios. Whether you're working with chain, wire rope, or synthetic slings, this safety pin shackle ensures maximum load security, especially in permanent and long-term applications where movement or vibration may occur. Each shackle is individually stamped with its working load limit for easy identification and compliance. The Bullivants Safety Bow Shackle also complies with AS 2741:2002, providing you with peace of mind knowing you are using high-quality, industry-standard equipment. Upgrade your lifting gear collection with this versatile bow shackle, available now at Smartfox NZ. Please note that the image is for representation purposes only; the actual product may differ slightly in appearance. Perfect for construction, rigging, and hauling needs, this safety bow shackle is designed to enhance efficiency and safety in all your lifting tasks.

Bullivants Safety Bow Shackle 4.7T
Bow shackle suitable for 2 direct connections to the load
Safety pin shackle for use where greater load security is required in permanent and long term applications and where vibration or movement of the load may occur
Suitable for various lifting in conjunction with chain, wire rope and synthetic sling applications
Individually stamped with the Working Load Limit (WLL) in tonnes
Complies with AS 2741:2002
Image for representation purposes only, actual product may differ

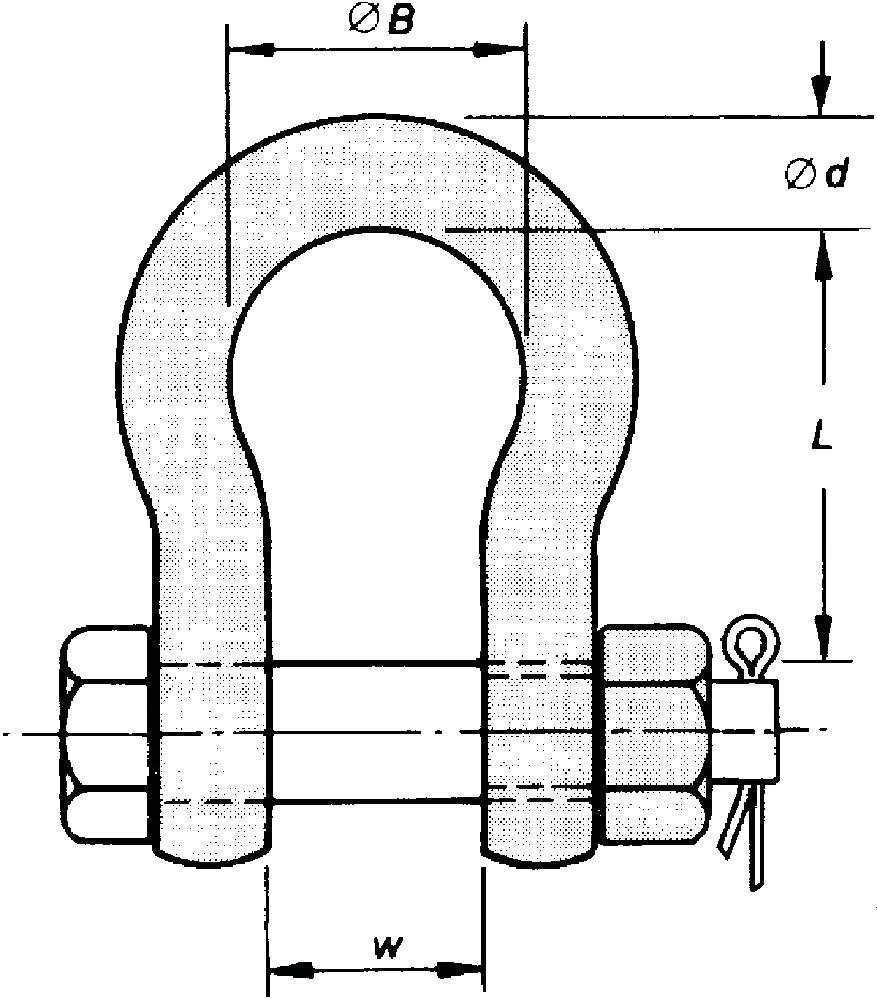

TECHNICAL SPECIFICATIONS
Material Alloy Grade S Galvanised
WLL 4.70t
d 19mm
D 22mm
W 32mm
B 51mm
L 72mm

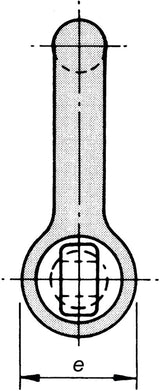

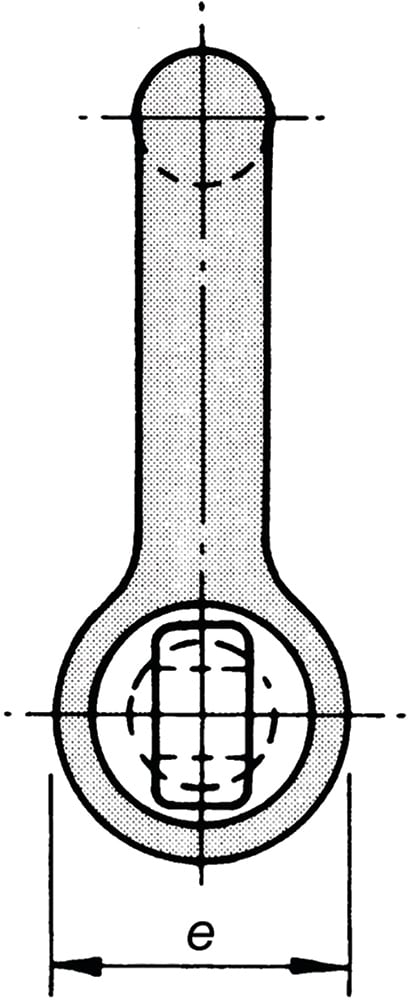

e 48mm
