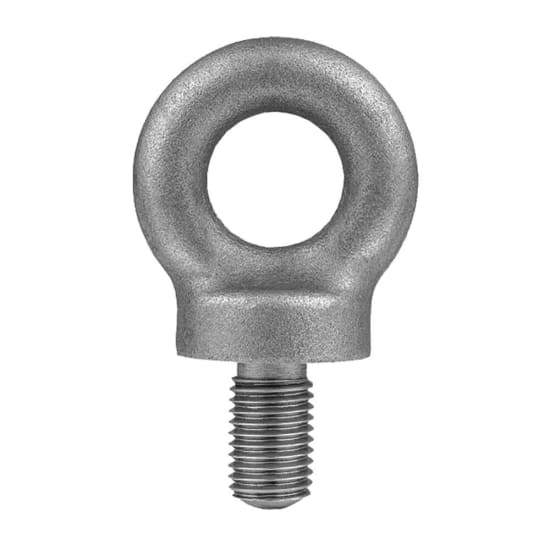

Bullivants Eye Bolt D/F-UNC 5/8" 0.80T WLL (Each)

Introducing the Bullivants Eye Bolt D/F-UNC 5/8" - your reliable choice for heavy-duty lifting and securing applications. This Grade 4 Imperial Eyebolt features a UNC thread design and is engineered for strength and durability, ensuring optimal performance in a variety of settings. With a Working Load Limit (WLL) of 0.80 tons, this eye bolt is stamped with WLL F2 for easy identification and compliance with safety standards, including AS 2317. Ideal for construction, rigging, and industrial applications, the Bullivants Eye Bolt is a perfect solution for those who require both strength and reliability. The size specifications make this product versatile and capable of handling various tasks. Each eye bolt is precision-engineered to provide the ultimate performance you need in your lifting operations. Please note that the image is for representation purposes only; the actual product may differ in appearance. Strength, reliability, and compliance—choose the Bullivants Eye Bolt D/F-UNC 5/8" for your lifting needs and experience quality you can trust!

Bullivants Eye Bolt D/F-UNC 5/8" 0.80T WLL (Each)

Grade 4 Imperial Eyebolt
UNC Thread
Stamped with WLL F2
Complies with AS 2317
Image for representation purposes only, actual product may differ

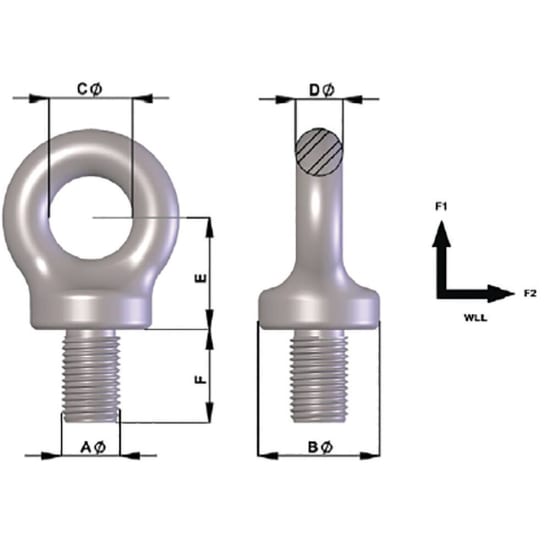

TECHNICAL SPECIFICATIONS
A (") 5/8
WLL F1 (t) 0.80
WLL F2 (t) 0.20
B (mm) 35
C (mm) 23
D (mm) 14
F (mm) 27
Threads Per Inch 11
