Bullivants Eye Bolt D/F-M20X2.50 1.60T WLL (Each)

Discover the Bullivants Eye Bolt D/F-M20X2.50, a high-quality Grade 4 metric eyebolt designed for heavy-duty applications. With a working load limit (WLL) of 1.60 tonnes, this durable eyebolt is engineered to meet rigorous safety standards. Perfect for both industrial and construction uses, this metric coarse thread eyebolt is a reliable choice for lifting and securing loads safely.

Crafted from premium materials, the Bullivants Eye Bolt is stamped with WLL F2 and complies with the Australian Standard AS 2317, ensuring it meets the highest industry-specific requirements. This M20 eyebolt provides exceptional strength and functionality, making it ideal for various applications, including rigging, lifting, and pulling tasks.

Specifications:
- Thread Size: M20
- Working Load Limit (F1): 1.60 tonnes
- Working Load Limit (F2): 0.40 tonnes

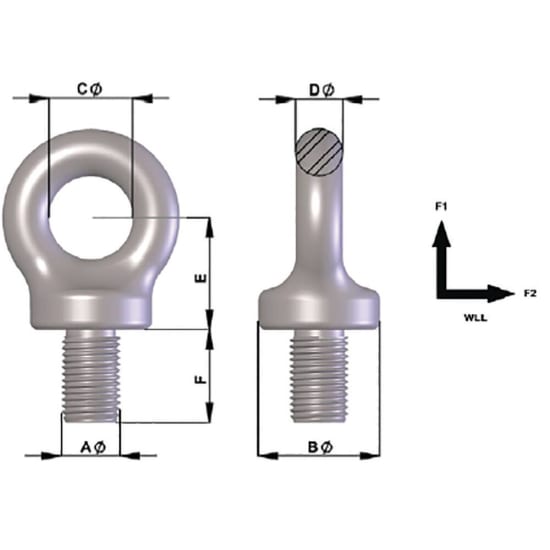

- Dimensions:
- A (mm): 20
- B (mm): 42
- C (mm): 30
- D (mm): 16
- F (mm): 38
- Thread Pitch: 2.5 mm

Please note that the image is for representation purposes only and the actual product may differ. Whether you’re in a workshop or at a construction site, the Bullivants Eye Bolt D/F-M20X2.50 is the essential lifting accessory you need for safer, more effective load management.

Bullivants Eye Bolt D/F-M20X2.50 1.60T WLL (Each)

Grade 4 Metric Eyebolt
Metric Coarse Thread
Stamped with WLL F2
Complies with AS 2317
Image for representation purposes only, actual product may differ


TECHNICAL SPECIFICATIONS
A (mm) M20
WLL F1 (t) 1.6
WLL F2 (t) 0.40
B(mm) 42
C (mm) 30
D (mm) 16
F (mm) 38
Thread pitch (mm) 2.5
