Bullivants Eye Bolt D/F-M16X2.00 0.80T WLL (Each)

The Bullivants Eye Bolt D/F-M16X2.00 offers exceptional strength and reliability for various lifting and securing applications. Designed according to Grade 4 specifications, this high-quality metric eyebolt features a metric coarse thread (M16), ensuring a secure fit in any setup. With a Working Load Limit (WLL) of 0.80 tonnes, this eyebolt is ideal for heavy-duty tasks, providing peace of mind whether in construction, engineering, or industrial environments. Each eyebolt is stamped with the WLL F2, compliant with AS 2317 standards, guaranteeing safety and performance. The precision-engineered design includes dimensions of 35mm for the width, 23mm for the eye diameter, and a thread pitch of 2.0mm, making it compatible with various lifting chains and components. Please note that the image is for representation purposes only, and the actual product may differ slightly in appearance. Choose Bullivants for your lifting solutions—strong, safe, and reliable, specifically tailored for professionals who value quality.

Bullivants Eye Bolt D/F-M16X2.00 0.80T WLL (Each)

Grade 4 Metric Eyebolt
Metric Coarse Thread
Stamped with WLL F2
Complies with AS 2317
Image for representation purposes only, actual product may differ

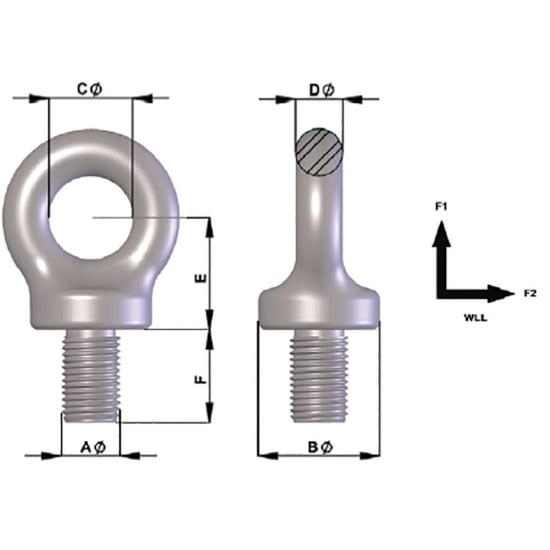

TECHNICAL SPECIFICATIONS
A (mm) M16
WLL F1 (t) 0.80
WLL F2 (t) 0.20
B(mm) 35
C (mm) 23
D (mm) 14
F (mm) 27
Thread Pitch (mm) 2.0
