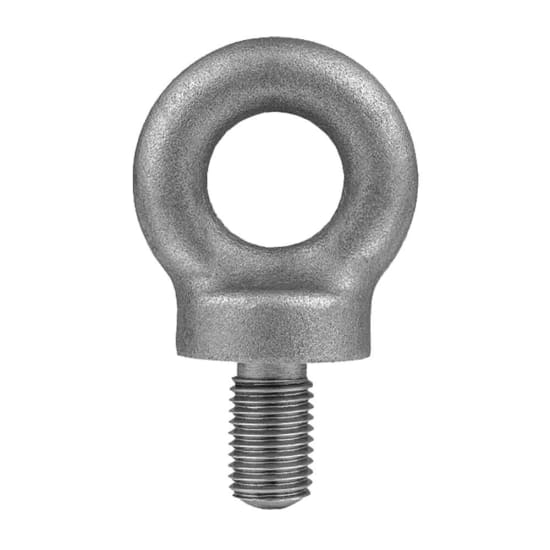

Bullivants Eye Bolt D/F-BSW 7/8" 2.00T WLL (Each)

Introducing the Bullivants Eye Bolt D/F-BSW 7/8" 2.00T WLL, a premium-grade 4 imperial eyebolt designed for maximum strength and reliability. Engineered to meet stringent safety standards, this eye bolt is an essential component for lifting and rigging applications in various industrial settings. With a working load limit (WLL) of 2.00 tonnes, this eyebolt not only conforms to the AS 2317 specifications but is also stamped with WLL F2 for added assurance of its load-bearing capability.

The eye bolt features a BSW thread and is meticulously designed to ensure a secure fit for your lifting needs. The dimensions of the Bullivants eye bolt are tailored for optimal performance, with a size of 7/8” and a base diameter (B) of 50mm. The robust construction also features a C dimension of 32mm, a D of 20mm, and F of 41mm, providing reliable anchoring points vital for safety in rigging.

Perfect for use in construction, marine, and industrial applications, the Bullivants Eye Bolt D/F-BSW is ideal for professionals seeking high-quality lifting hardware. Strength, compliance, and safety are the cornerstones of this product, making it a trustworthy choice for all your lifting and rigging needs. Note that the image is for representation purposes, and the actual product may differ slightly.
Bullivants Eye Bolt D/F-BSW 7/8" 2.00T WLL (Each)

Grade 4 Imperial Eyebolt
BSW Thread
Stamped with WLL F2
Complies with AS 2317
Image for representation purposes only, actual product may differ

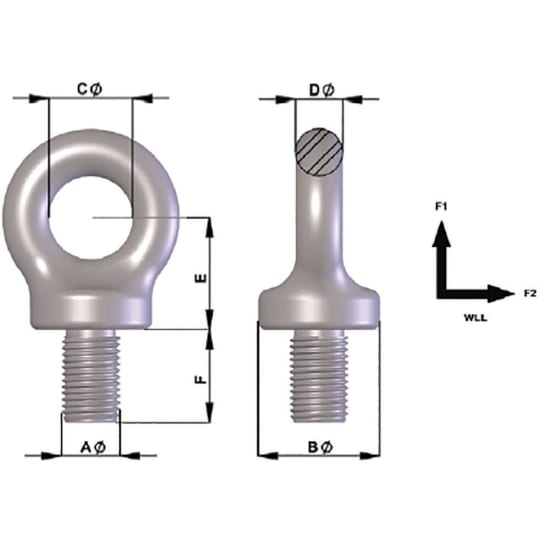

TECHNICAL SPECIFICATIONS
A (") 7/8
WLL F1 (t) 2.0
WLL F2 (t) 0.50
B (mm) 50
C (mm) 32
D (mm) 20
F (mm) 41
Threads Per Inch 9
