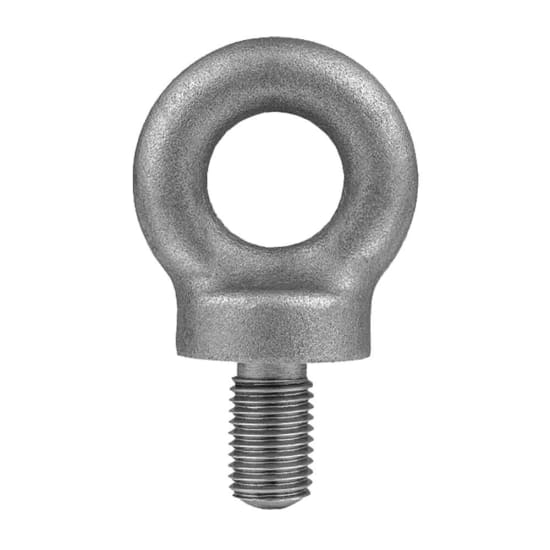

Bullivants Eye Bolt D/F-BSW 5/8" 0.80T WLL (Each)

Introducing the Bullivants Eye Bolt D/F-BSW 5/8", your essential lifting and rigging solution designed for durability and safety. Constructed from high-grade materials, this Grade 4 Imperial Eyebolt perfectly combines strength and reliability, making it ideal for various applications in construction, engineering, and mechanical sectors. The 5/8" size and BSW thread ensure compatibility with a wide range of equipment and fittings, allowing for easy integration into your existing systems.

This eye bolt boasts a Working Load Limit (WLL) of 0.80T, stamped with WLL F2 for your peace of mind. Each bolt complies with the stringent Australian standard AS 2317, ensuring that you're using a product that's built to withstand rigorous demands. The robust design features dimensions of 35mm for B, 23mm for C, and 14mm for D, ensuring optimal performance in your lifting operations.

Whether you're securing loads or anchoring equipment, the Bullivants Eye Bolt is versatile enough to meet your needs. Perfect for industrial and domestic use alike, it is an indispensable part of any toolkit.

Please note that the image is for representation purposes only; actual product may vary slightly in appearance. Invest in quality with Bullivants, and elevate your lifting projects with confidence. Order your Bullivants Eye Bolt D/F-BSW 5/8" today and experience unparalleled strength and safety in all your lifting operations. Don't compromise on quality when it comes to your lifting needs – choose Bullivants for excellence and resilience.

Bullivants Eye Bolt D/F-BSW 5/8" 0.80T WLL (Each)

Grade 4 Imperial Eyebolt
BSW Thread
Stamped with WLL F2
Complies with AS 2317
Image for representation purposes only, actual product may differ

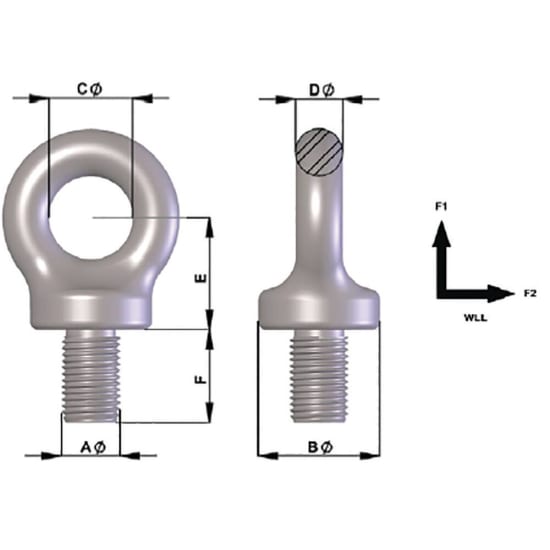

TECHNICAL SPECIFICATIONS
A (") 5/8
WLL F1 (t) 0.80
WLL F2 (t) 0.20
B (mm) 35
C (mm) 23
D (mm) 14
F (mm) 27
Threads Per Inch 11
