SKU:
PR703584
Bullivants Bow Shackle Screw Pin 8.50T WLL 25mm Body Diameter (Each)
$121.00
Unit price
/
Unavailable
Bullivants Bow Shackle Screw Pin 8.50T WLL 25mm Body Diameter (Each)
Suitable for various lifting in conjunction with chain, wire rope and synthetic sling applications
Bow shackle suitable for 2 direct connections to the load
Screw pin shackle for use in non-permanent applications
Used in various lifting applications in conjunction with chain, wire rope, synthetic slings, etc.
Easily identifiable by yellow pin
Individually stamped with the working load limit (WLL) in tonnes
Complies to AS2741:2002
Image for representation purposes only

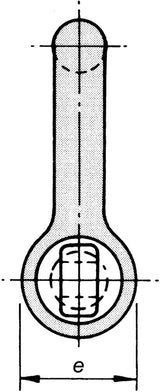

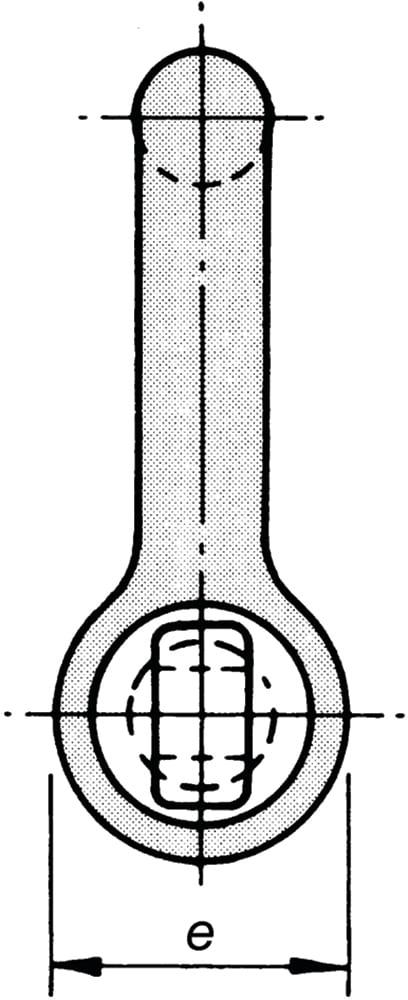

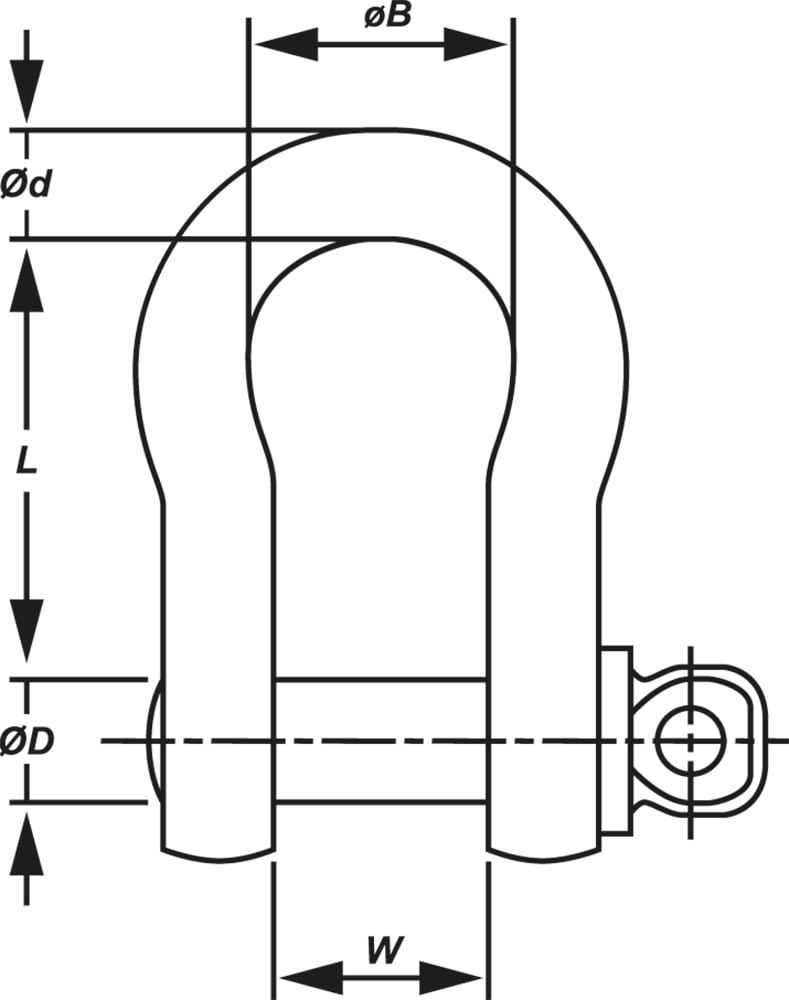

TECHNICAL SPECIFICATIONS
Mfr No
WSS-0085-SC-B
Finish
Galvanised
WLL
8.50t
d
25mm
D
29mm
W
43mm
B
68mm
L
95mm
e
60mm
Suitable for various lifting in conjunction with chain, wire rope and synthetic sling applications
Bow shackle suitable for 2 direct connections to the load
Screw pin shackle for use in non-permanent applications
Used in various lifting applications in conjunction with chain, wire rope, synthetic slings, etc.
Easily identifiable by yellow pin
Individually stamped with the working load limit (WLL) in tonnes
Complies to AS2741:2002
Image for representation purposes only
TECHNICAL SPECIFICATIONS
Mfr No
WSS-0085-SC-B
Finish
Galvanised
WLL
8.50t
d
25mm
D
29mm
W
43mm
B
68mm
L
95mm
e
60mm
