SKU:
PR702800

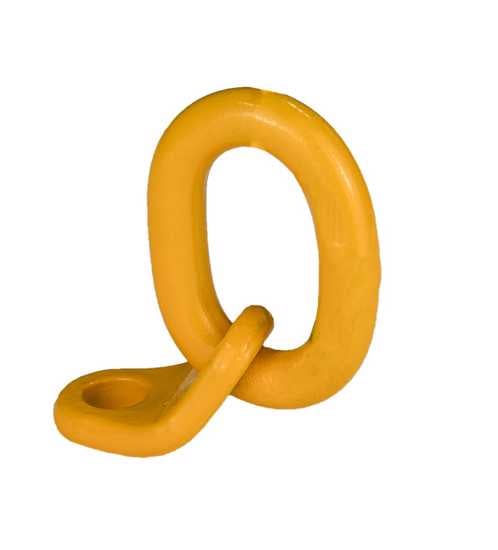

Bullivants Link Bracket M12, 1.0T (Each)
$65.60
Unit price
/
Unavailable
Discover the Bullivants Link Bracket M12, 1.0T – the ultimate lifting solution for your maintenance and repair needs. Designed for efficiency and safety, this link bracket is an essential tool for lifting components with ease. Unlike standard eye bolts, the Bullivants Link Bracket requires significantly less clearance, making it a go-to choice for confined spaces. Its robust Bolt Grade 8.8 construction ensures dependable performance under heavy loads, offering a Working Load Limit (WLL) of 1.02 tons. This link bracket complies with the ANSI/ASME B30.9.1984 standards, giving you peace of mind during operation. The quick and easy positioning of swing gear or bearings facilitates smoother processes in your equipment maintenance. Featuring technical specifications such as a minimum bolt diameter of M12, dimension A measuring 43mm, dimension B at 27mm, and dimension E at 7.5mm, this product is engineered for versatility and reliability. Elevate your lifting efficiency with the Bullivants Link Bracket M12. Available now at Smartfox NZ.
Link bracket assemblies are usually used to lift components during maintenance and repairs of equipment.
Requires less clearance than standard eye bolts
Allows for faster and easier positioning of swing gear/ bearing
Bolt Grade 8.8
Complies with ANSI/ASME B30.9.1984
TECHNICAL SPECIFICATIONS
Mfr No. WLIB-120-R-LT081301
Minimum Bolt Diameter M12
WLL 1.02T

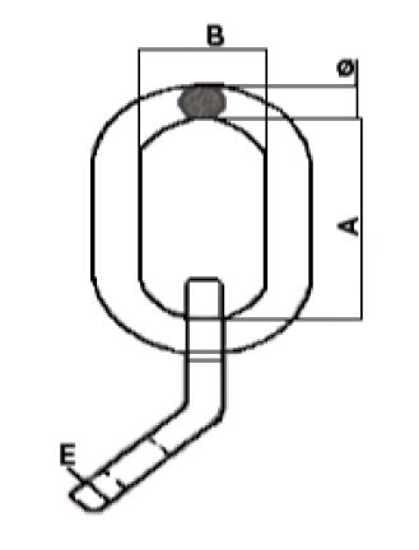

Dimension A 43mm
Dimension B 27mm
Dimension E 7.5mm
Link bracket assemblies are usually used to lift components during maintenance and repairs of equipment.
Requires less clearance than standard eye bolts
Allows for faster and easier positioning of swing gear/ bearing
Bolt Grade 8.8
Complies with ANSI/ASME B30.9.1984
TECHNICAL SPECIFICATIONS
Mfr No. WLIB-120-R-LT081301
Minimum Bolt Diameter M12
WLL 1.02T
Dimension A 43mm
Dimension B 27mm
Dimension E 7.5mm
