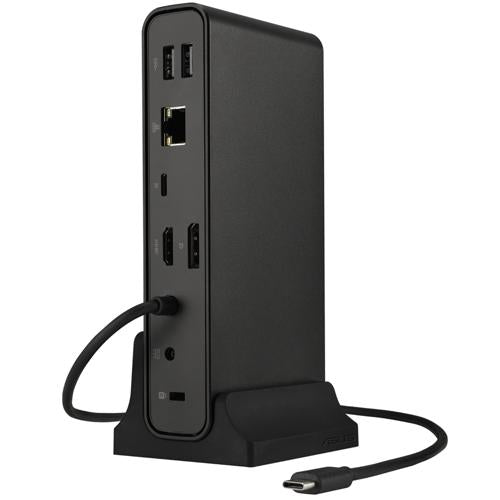

ASUS DC301 Triple 4K Display USB-C Dock

ASUS Triple Display USB-C Dock Duo DC301 is a sleek, compact one-stop device that streamlines laptop connectivity. Power your laptop through a single cable, connect to your network and peripherals, and multitask with up to four monitors—including a laptop monitor and three external monitors. It also features an integrated SD card reader and supports high-speed data transfer and charging, making it ideal for business and productivity environments.

Supports up to three external 4K displays via HDMI, DisplayPort, and USB-C
USB Power Delivery up to 90W for laptop charging
Two DisplayPort 1.4 outputs
One HDMI 2.0 output
Gigabit Ethernet LAN port (RJ-45)
Two USB 3.2 Gen 1 Type-A ports
One USB 3.2 Gen 2 Type-A port
One USB 3.2 Gen 2 Type-C port
Integrated SD card reader
Combo audio jack (headphone/microphone)
One-button laptop wake-up functionality
Kensington lock slot for security

Part Number
90XB0A5N-BDS060

Product Name
DC301 Triple Display USB-C Dock Duo

Connectivity Technology
Wired

USB Power Delivery
Up to 90W

HDMI Ports
1

HDMI Version
2.0

DisplayPort Ports
2

DisplayPort Version
1.4

USB 3.2 Gen 1 Type-A Ports
2

USB 3.2 Gen 2 Type-A Ports
1

USB 3.2 Gen 2 Type-C Ports
1

Ethernet LAN
Gigabit (1000 Mbit/s)

Ethernet Port
1 x RJ-45

Audio Jack
Combo headphone/microphone

SD Card Reader
Yes

Maximum Resolution
3840 x 2160 pixels

Maximum Refresh Rate
60 Hz

Power Source Type
DC

Input Current
7.5 A

Power Supply
150 W

Dimensions (W x D x H)
160 mm x 80 mm x 32 mm

Weight
514 g

Colour
Black

Cable Lock Slot
Kensington

Included Accessories
AC adapter, USB-C cable, docking stand, user manual, warranty card

OS Compatibility
Windows (ASUS and non-ASUS notebooks)
