SKU:
PR809992

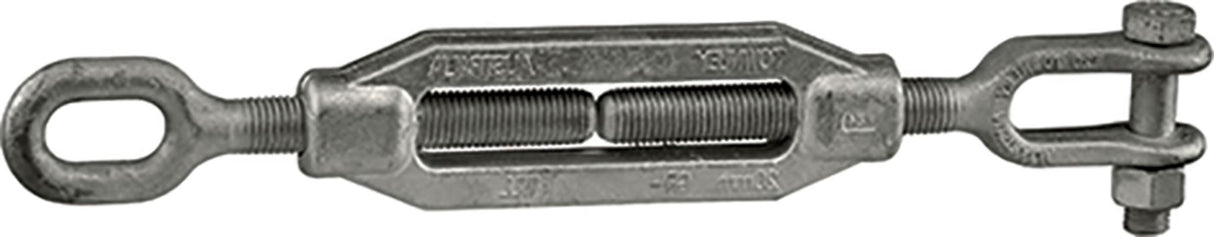

Turnbuckle Clevis & Eye Galvanised 16mm Grade L-Each
$628.00
Unit price
/
Unavailable
Explore our high-quality Turnbuckle Clevis & Eye Galvanised 16mm Grade L-Each, designed for optimal tensioning and length adjustment in various engineering applications. Our premium turnbuckles are essential for ensuring stability in masts, guy wires, and other longitudinal structures. Each turnbuckle is engineered with left-hand and right-hand threads, enabling easy tension adjustments without introducing twisting or torque build-up.
Constructed from certified heat-treated Australian Steel (AS1442/AS1444), this turnbuckle boasts a robust 6:1 safety factor in accordance with AS2319 2001 standards, making it a reliable choice for lifting applications. It is designed to be tightened under load, offering better locking capabilities during service.
The open body design allows for easy inspection of the threaded section, ensuring safety and functionality without disassembly. This Turnbuckle Clevis & Eye is perfect for both indoor tensioning systems and general rigging applications, providing versatility for any engineering project.
Specifications include a nominal size of M16 and a Work Load Limit (WLL) of 0.75t, making it ideal for a range of demanding tasks. Each unit is supplied with certification, providing peace of mind with your purchase.
Don't compromise on quality; choose turnbuckles that combine durability, efficiency, and safety for your construction and rigging needs.
** Please note this item may have a longer delivery time. For urgent orders please enquire about excepted dispatch date prior to purchasing **
Turnbuckle Clevis & Eye Galvanised 16mm Grade L-Each
Turnbuckles are components to provide means of length adjustment and tensioning in longitudinal structures, masts, guy wires and other similar structures and engineering applications. Turnbuckles can tension assemblies without introducing twisting due to the end fittings consisting of left hand and right hand threads respectively which prevents torque build up.
Manufactured with a 6:1 Safety Factor according to AS2319 2001 and can be used for lifting applications
Manufactured using only heat certified Australian Steel (AS1442/AS1444)
Can be tightened under load and better scope for locking while in service
Have an open body exposing the threaded section and can be easily inspected in-situ
Suitable for indoor tensioning systems and general rigging tensioning
Supplied with certification
Nominal Size: M16
WLL: 0.75t
Type: Grade L
Finish: Galvanised

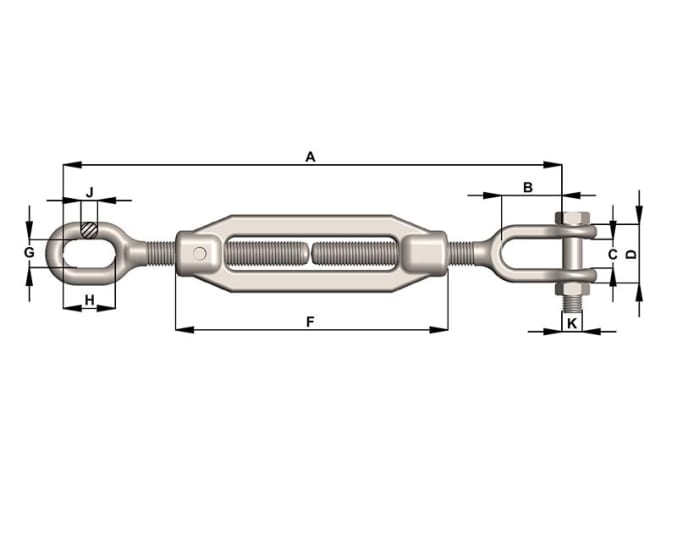

TECHNICAL SPECIFICATIONS
A (Open) 490mm
A (Closed) 355mm
B 45mm
C 20mm
D 40mm
F 204mm
G 17mm
H 36mm
J 12mm
K 12mm
Constructed from certified heat-treated Australian Steel (AS1442/AS1444), this turnbuckle boasts a robust 6:1 safety factor in accordance with AS2319 2001 standards, making it a reliable choice for lifting applications. It is designed to be tightened under load, offering better locking capabilities during service.
The open body design allows for easy inspection of the threaded section, ensuring safety and functionality without disassembly. This Turnbuckle Clevis & Eye is perfect for both indoor tensioning systems and general rigging applications, providing versatility for any engineering project.
Specifications include a nominal size of M16 and a Work Load Limit (WLL) of 0.75t, making it ideal for a range of demanding tasks. Each unit is supplied with certification, providing peace of mind with your purchase.
Don't compromise on quality; choose turnbuckles that combine durability, efficiency, and safety for your construction and rigging needs.
** Please note this item may have a longer delivery time. For urgent orders please enquire about excepted dispatch date prior to purchasing **
Turnbuckle Clevis & Eye Galvanised 16mm Grade L-Each
Turnbuckles are components to provide means of length adjustment and tensioning in longitudinal structures, masts, guy wires and other similar structures and engineering applications. Turnbuckles can tension assemblies without introducing twisting due to the end fittings consisting of left hand and right hand threads respectively which prevents torque build up.
Manufactured with a 6:1 Safety Factor according to AS2319 2001 and can be used for lifting applications
Manufactured using only heat certified Australian Steel (AS1442/AS1444)
Can be tightened under load and better scope for locking while in service
Have an open body exposing the threaded section and can be easily inspected in-situ
Suitable for indoor tensioning systems and general rigging tensioning
Supplied with certification
Nominal Size: M16
WLL: 0.75t
Type: Grade L
Finish: Galvanised
TECHNICAL SPECIFICATIONS
A (Open) 490mm
A (Closed) 355mm
B 45mm
C 20mm
D 40mm
F 204mm
G 17mm
H 36mm
J 12mm
K 12mm
