SKU:
PR810187
15% off

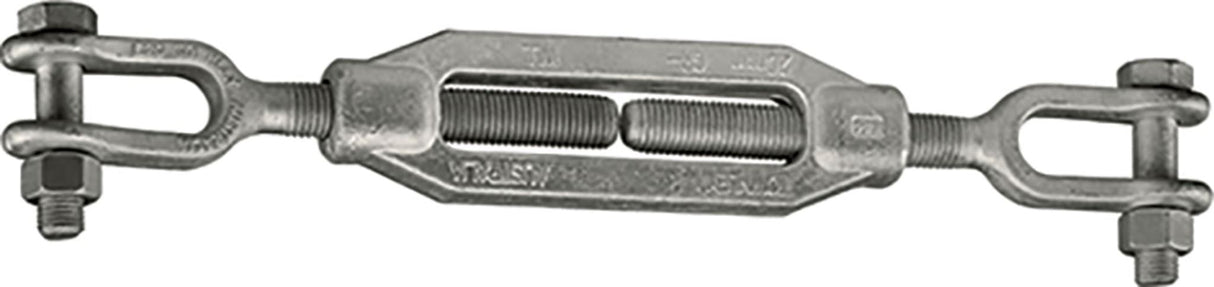

Turnbuckle Clevis & Clevis Galvanised 16mm Grade L (Each)
$599.25
$705.00
Unit price
/
Unavailable
Introducing the Turnbuckle Clevis & Clevis Galvanised 16mm Grade L, a vital component for any tensioning and rigging application. This high-quality turnbuckle is designed to provide precise adjustment and reliable tensioning in longitudinal structures, including masts, guy wires, and various engineering setups. The unique right-hand and left-hand threads eliminate torque build-up, ensuring secure installation without twisting or unexpected movement.
Crafted from heat-certified Australian steel (AS1442/AS1444), this turnbuckle boasts a robust 6:1 safety factor in accordance with AS2319 2001 standards, making it ideal for lifting applications. Its galvanized finish provides excellent corrosion resistance, extending the lifespan of the product while maintaining its efficiency in both indoor tensioning systems and general rigging tasks.
With a nominal size of M16 and a working load limit (WLL) of 0.75 tonnes, this Grade L turnbuckle is perfect for professionals and DIY enthusiasts alike. The open body design exposes the threaded section for easy inspection and adjustment, even while under load, ensuring optimal performance in demanding environments.
Whether you're working on a construction project, setting up a recreational rigging system, or conducting maintenance on existing installations, the Turnbuckle Clevis & Clevis Galvanised 16mm Grade L is your go-to choice for strength, safety, and reliability. Supplied with certification for added peace of mind, it is a must-have in your engineering toolkit. Upgrade your rigging setup today with this essential component from Smartfox NZ!
Turnbuckle Clevis & Clevis Galvanised 16mm Grade L (Each)
Turnbuckles are components to provide means of length adjustment and tensioning in longitudinal structures, masts, guy wires and other similar structures and engineering applications. Turnbuckles can tension assemblies without introducing twisting due to the end fittings consisting of left hand and right hand threads respectively which prevents torque build up.
Manufactured with a 6:1 Safety Factor according to AS2319 2001 and can be used for lifting applications
Manufactured using only heat certified Australian Steel (AS1442/AS1444)
Can be tightened under load and better scope for locking while in service
Have an open body exposing the threaded section and can be easily inspected in-situ
Suitable for indoor tensioning systems and general rigging tensioning
Supplied with certification
Nominal Size: M16
WLL: 0.75t
Type: Grade L
Finish: Galvanised

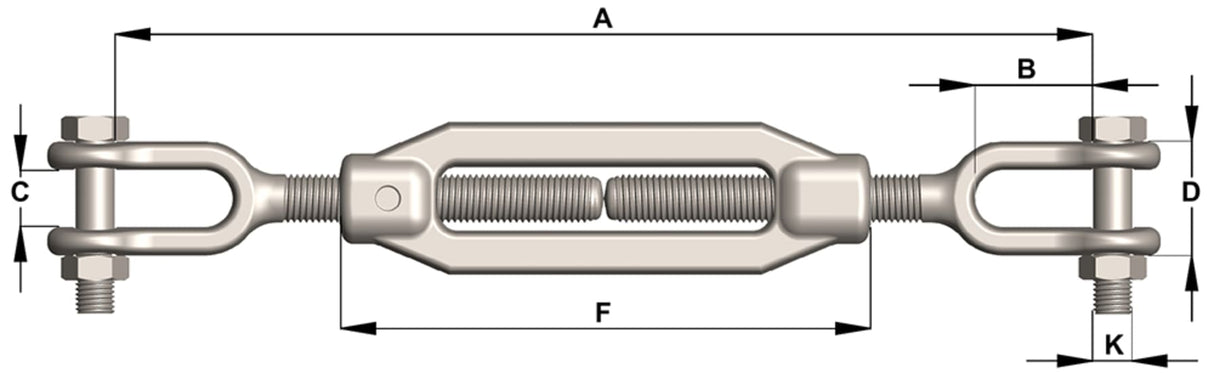

TECHNICAL SPECIFICATIONS
A (Open) 490mm
A (Closed) 355mm
B 45mm
C 20mm
D 40mm
F 204mm
K 12mm
Mfr No TBCCL16
Crafted from heat-certified Australian steel (AS1442/AS1444), this turnbuckle boasts a robust 6:1 safety factor in accordance with AS2319 2001 standards, making it ideal for lifting applications. Its galvanized finish provides excellent corrosion resistance, extending the lifespan of the product while maintaining its efficiency in both indoor tensioning systems and general rigging tasks.
With a nominal size of M16 and a working load limit (WLL) of 0.75 tonnes, this Grade L turnbuckle is perfect for professionals and DIY enthusiasts alike. The open body design exposes the threaded section for easy inspection and adjustment, even while under load, ensuring optimal performance in demanding environments.
Whether you're working on a construction project, setting up a recreational rigging system, or conducting maintenance on existing installations, the Turnbuckle Clevis & Clevis Galvanised 16mm Grade L is your go-to choice for strength, safety, and reliability. Supplied with certification for added peace of mind, it is a must-have in your engineering toolkit. Upgrade your rigging setup today with this essential component from Smartfox NZ!
Turnbuckle Clevis & Clevis Galvanised 16mm Grade L (Each)
Turnbuckles are components to provide means of length adjustment and tensioning in longitudinal structures, masts, guy wires and other similar structures and engineering applications. Turnbuckles can tension assemblies without introducing twisting due to the end fittings consisting of left hand and right hand threads respectively which prevents torque build up.
Manufactured with a 6:1 Safety Factor according to AS2319 2001 and can be used for lifting applications
Manufactured using only heat certified Australian Steel (AS1442/AS1444)
Can be tightened under load and better scope for locking while in service
Have an open body exposing the threaded section and can be easily inspected in-situ
Suitable for indoor tensioning systems and general rigging tensioning
Supplied with certification
Nominal Size: M16
WLL: 0.75t
Type: Grade L
Finish: Galvanised
TECHNICAL SPECIFICATIONS
A (Open) 490mm
A (Closed) 355mm
B 45mm
C 20mm
D 40mm
F 204mm
K 12mm
Mfr No TBCCL16
