SKU:
PR811767
Garrick Swivel Ute Crane 12V 500/800kg
$2,918.00
Unit price
/
Unavailable

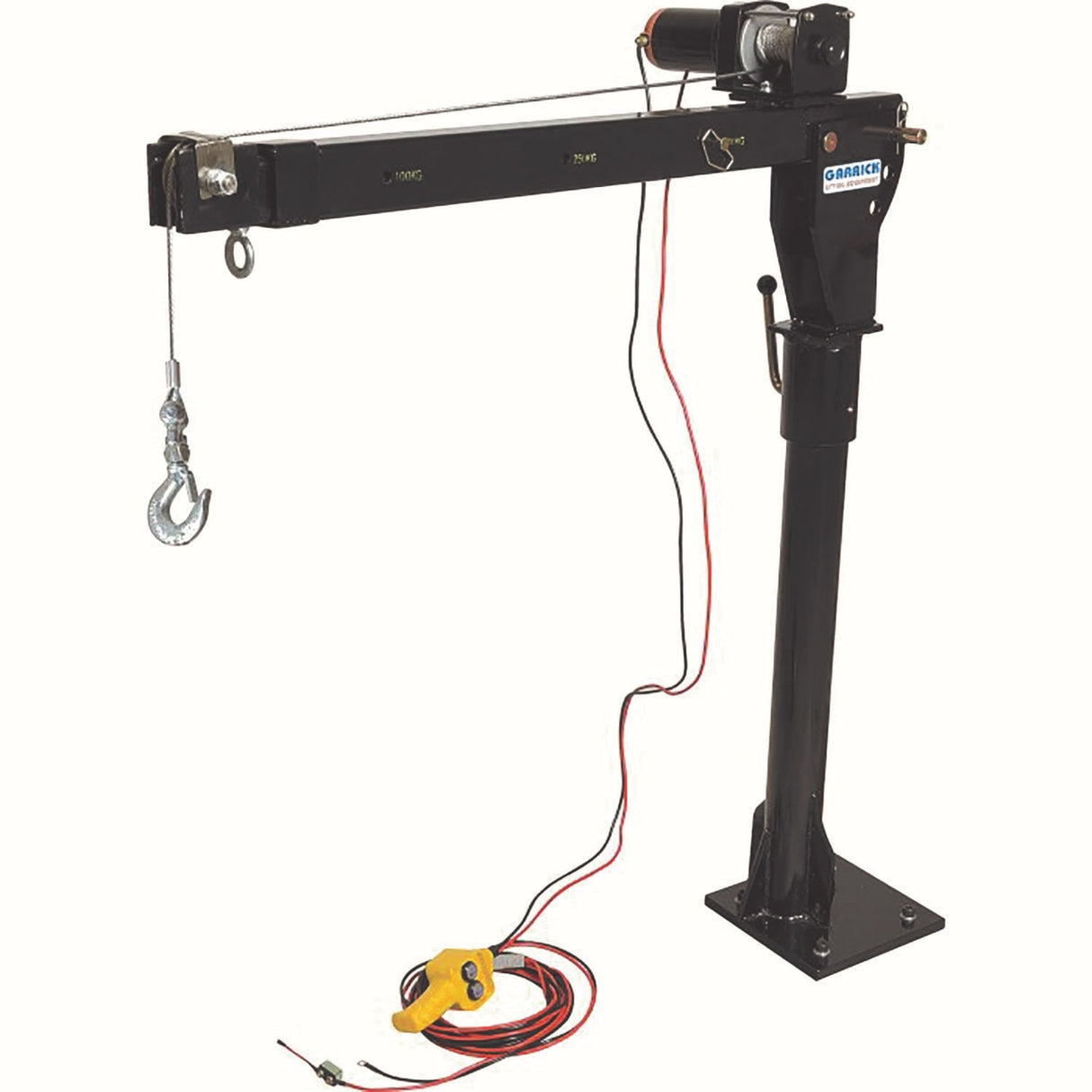

Garrick UTECRANE500 12V 500/800kg Capacity Swivel Ute Crane.
Compact, light weight and can be used in confined spaces
360 degrees rotation
800kg capacity: When set up with double-line lifting
500kg capacity: When set up with single-line lifting

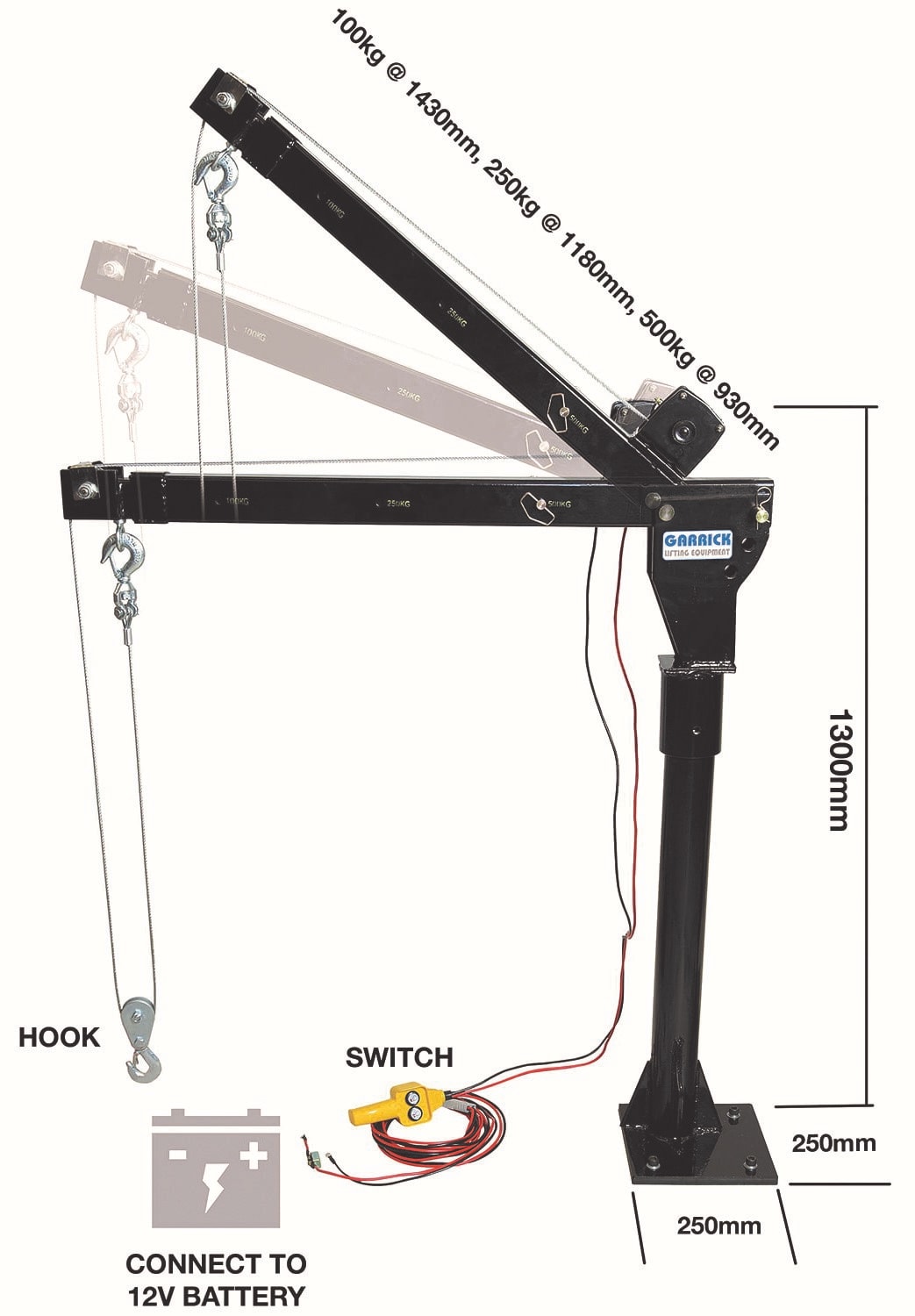

3 boom elevation angles: 3°, 20°, 40° raised manually
3.6 metre/minute lifting speed
TECHNICAL SPECIFICATIONS
TERM
DESCRIPTION
Single line Lifting Capacity(maximum)
500kg
Double-line Lifting Capacity(maximum)
800kg
Power
12V
Switch Cable Length
4.2m
Lifting Height
1940mm (Base to hook)
Dimensions (L x W x H)
1390mm x 430mm x 400mm
Weight
64kg
Compact, light weight and can be used in confined spaces
360 degrees rotation
800kg capacity: When set up with double-line lifting
500kg capacity: When set up with single-line lifting
3 boom elevation angles: 3°, 20°, 40° raised manually
3.6 metre/minute lifting speed
TECHNICAL SPECIFICATIONS
TERM
DESCRIPTION
Single line Lifting Capacity(maximum)
500kg
Double-line Lifting Capacity(maximum)
800kg
Power
12V
Switch Cable Length
4.2m
Lifting Height
1940mm (Base to hook)
Dimensions (L x W x H)
1390mm x 430mm x 400mm
Weight
64kg
