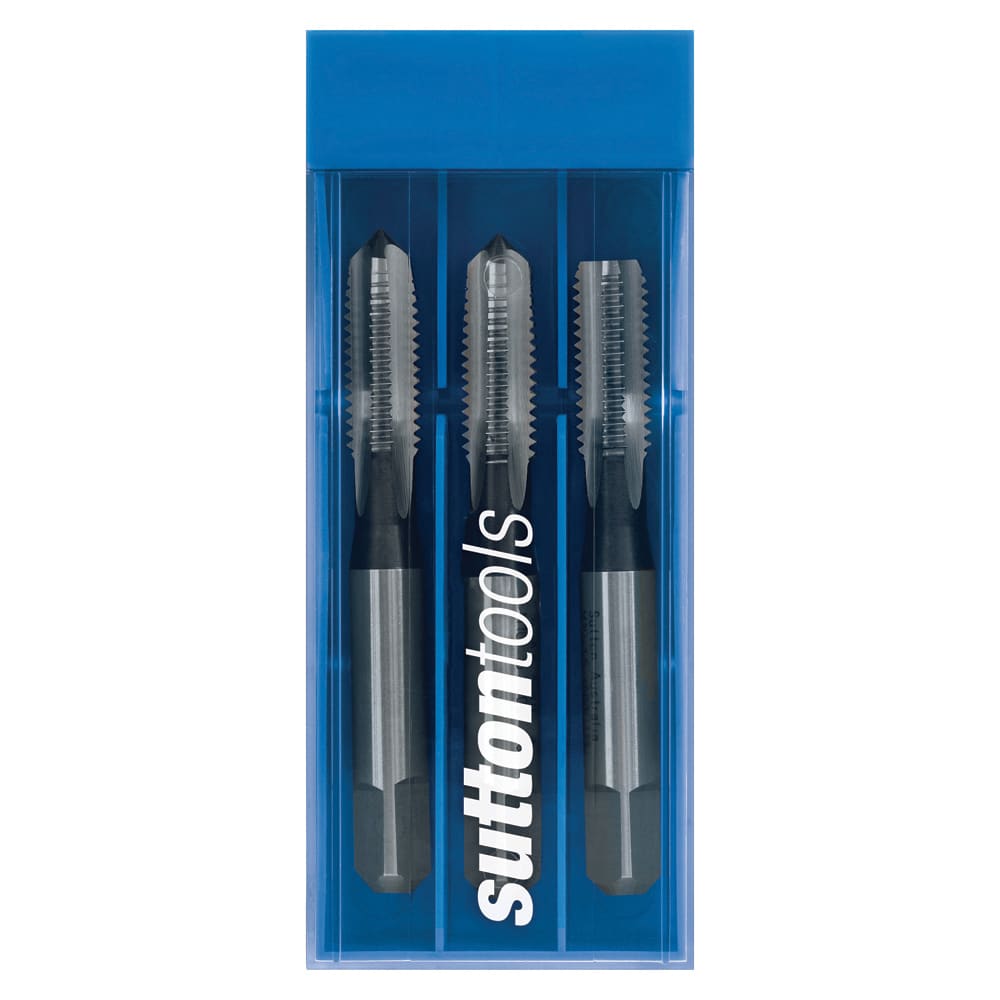

Sutton Straight Flute Tap Set-6.0mm x 1.00mm-Set

Discover the Sutton Straight Flute Tap Set, measuring 6.0mm x 1.00mm, perfect for general-purpose tapping needs. This high-quality tap set is designed to tackle materials with a strength of up to 1000N/mm˛, making it an ideal choice for both professional machinists and DIY enthusiasts. Whether you're using it for hand operations or machine tapping, this set ensures precision and reliability in every task. The Sutton tap set allows for depths up to approximately 1 x d1, offering versatility in various applications.

Crafted with durability in mind, this tap set boasts a range of technical specifications, including d1 at M6, ISO limits of 2 / 6H, and I1 at 66. The effective diameter (d2) measures 6.3mm, with a square (sq) size of 5 and other features like I4 at 8 and z at 3, providing you with comprehensive tools for your machining operations.

For a complete and efficient tapping experience, ensure you have the Sutton Straight Flute Tap Set in your toolkit. It’s the ideal solution for any professional project or maintenance task, ensuring high-quality threaded holes that meet industry standards. Upgrade your workshop with this essential tapping tool from Smartfox NZ today!

Sutton Straight Flute Tap Set-6.0mm x 1.00mm-Set

General purpose use
Suitable for materials up to 1000N/mm2
Suitable for both hand and machine operations
Depths up to approx. 1 x d1

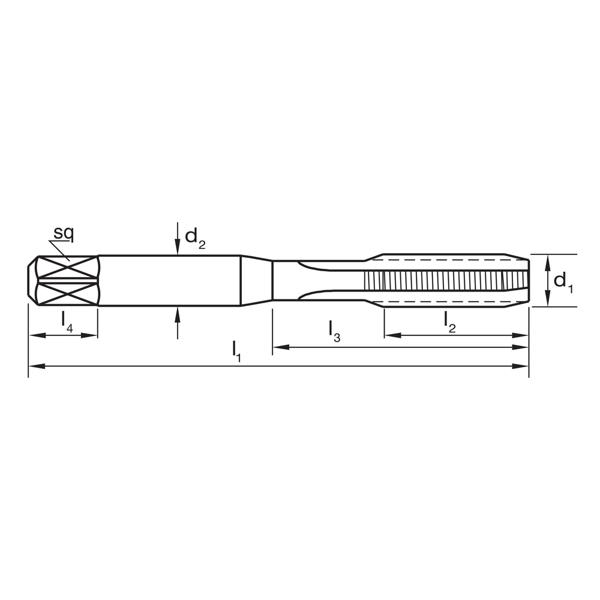

TECHNICAL SPECIFICATIONS
d1 M6
Limit ISO 2 / 6H
I1 66
I2 19
d2 6.3
sq 5
I4 8
z 3
Drill 5
Pitch 1.00
