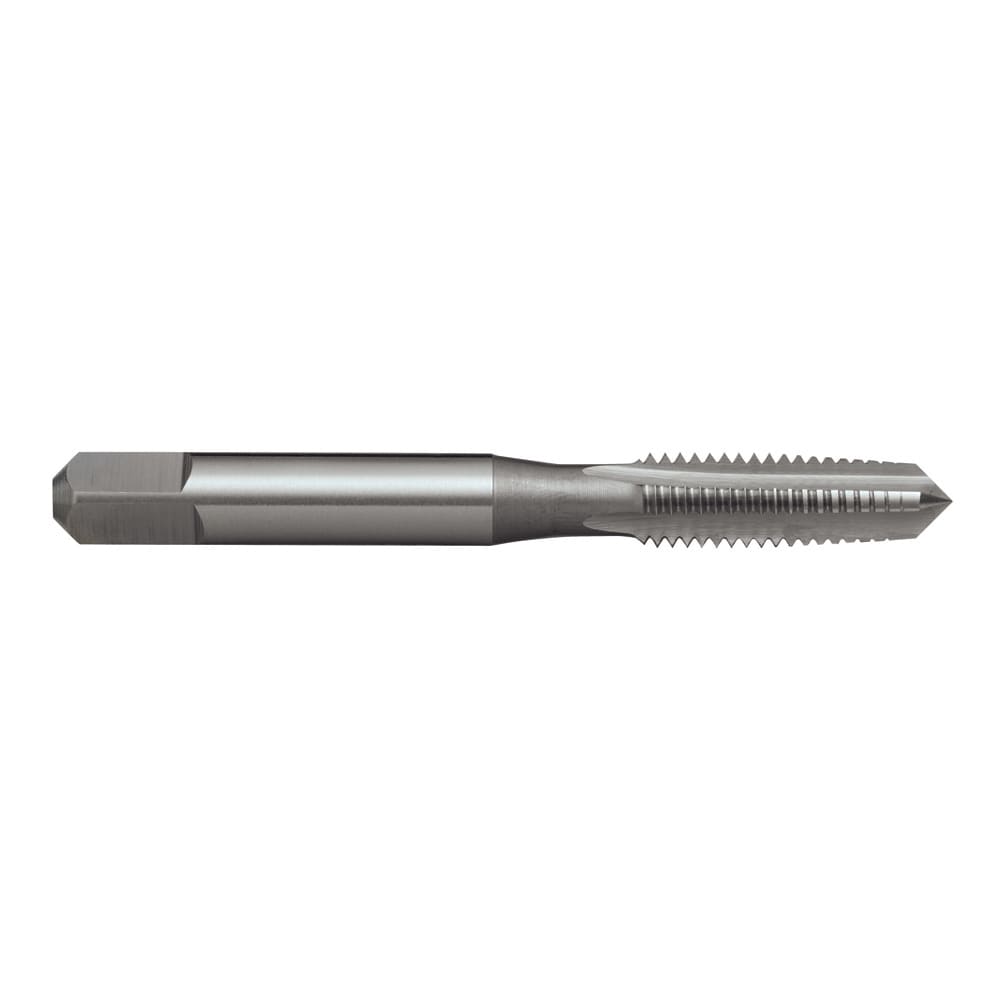

Sutton Straight Flute Tap M Taper-10x1.50mm (Each)

Introducing the Sutton Straight Flute Tap M Taper-10x1.50mm, expertly designed for general purpose use in a wide range of applications. This high-quality tap is ideal for threading materials up to 1000N/mm2, making it a reliable choice for both professionals and DIY enthusiasts alike. Whether you are using hand or machine operations, this versatile tap ensures smooth and accurate threading, enabling you to achieve the best results in your projects.

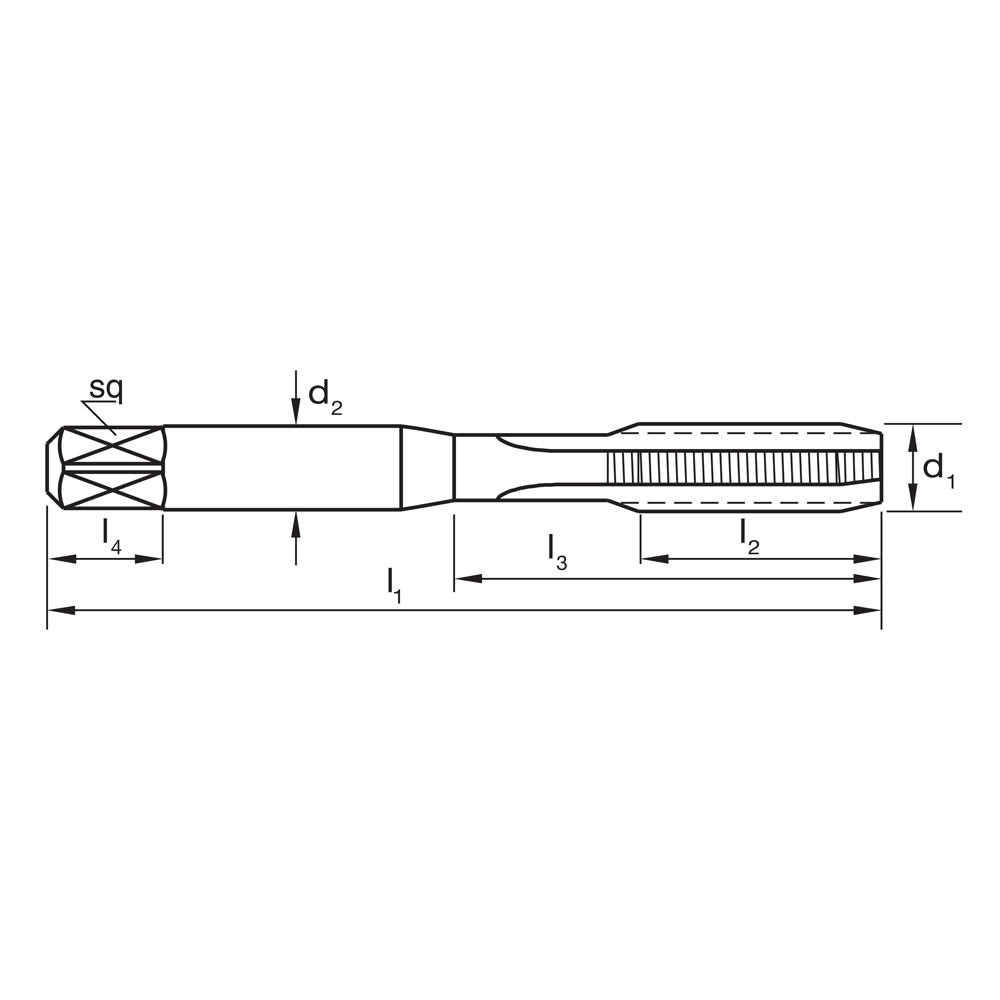

Technical specifications include:
- Diameter (d1): M10
- Limit Type: ISO 2 / 6H
- Overall Length (I1): 80mm
- Flute Length (I2): 24mm
- Diameter (d2): 10mm
- Square Size (sq): 8mm
- Recommended Drill Size: 8.5mm
- Manufacturer Part No.: T3841000
- Brand: Sutton Tools

The Sutton Straight Flute Tap is engineered for durability and performance, making it a staple in any toolkit. With its precise design and superior manufacturing process, this tap delivers outstanding results, whether you are working on metal, plastic, or wood. Elevate your threading tasks with the Sutton Straight Flute Tap, the perfect tool to achieve professional-grade quality with each use. Shop now at Smartfox NZ to ensure you have the right tools for your next project!

Sutton Straight Flute Tap M Taper-10x1.50mm (Each)

General purpose use
Suitable for materials up to 1000N/mm2
Suitable for both hand and machine operations


TECHNICAL SPECIFICATIONS
d1 M10
Limit ISO 2 / 6H
I1 80mm
I2 24mm
d2 10mm
sq 8mm
Drill 8.5mm
Mfr Part No. T3841000
Brand Sutton Tools
