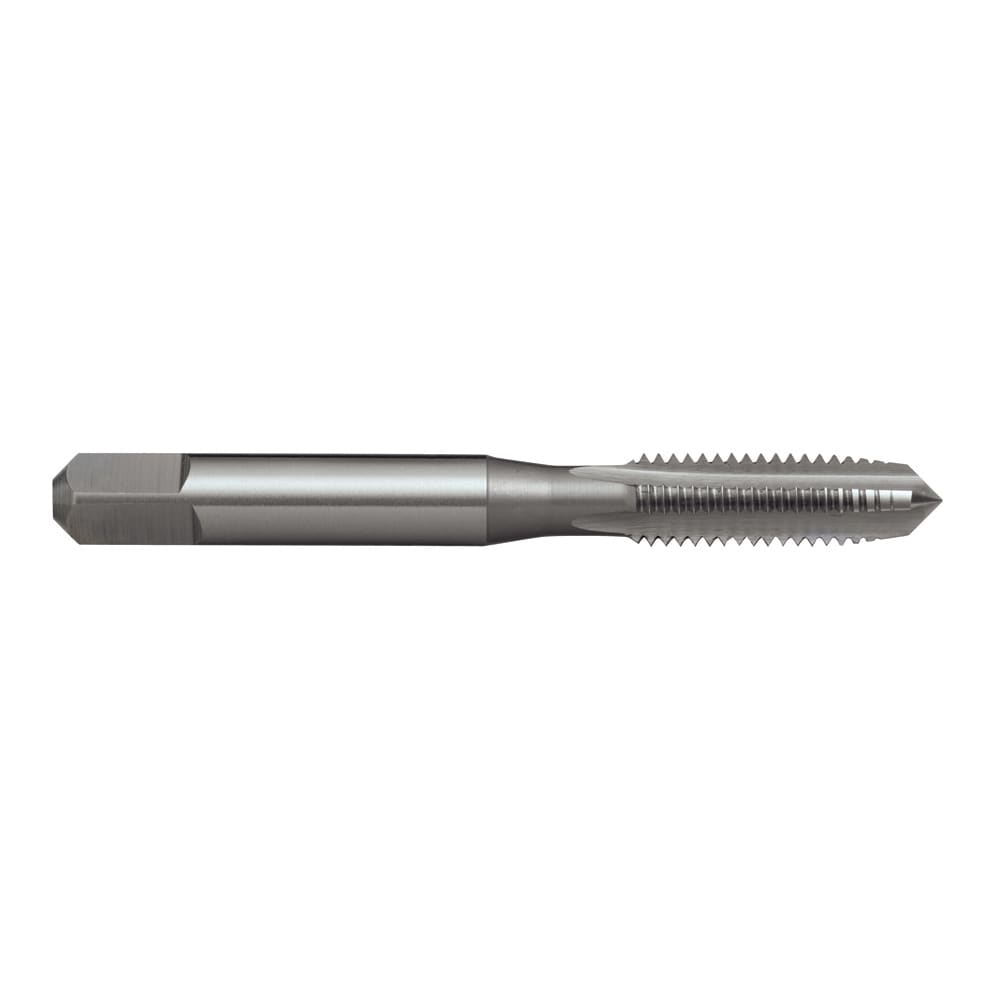

Sutton Straight Flute Tap BSW Intermediate-1/2" (Each)

Introducing the Sutton Straight Flute Tap BSW Intermediate-1/2" (Each) – your go-to tool for precision tapping operations! This high-quality tap is designed for general-purpose use, making it an essential component in any machinist's toolkit. Crafted to handle materials with a tensile strength of up to 1000N/mm˛, it ensures reliability and durability for both hand and machine operations.

Whether you're working with through holes or blind holes, this Sutton tap delivers impeccable performance with its 1/2" diameter and 12 TPI (tooth per inch) configuration. The Straight Flute design enhances chip removal, which aids in maintaining cutting efficiency and extends tool life. Ideal for metalworking, woodworking, and a variety of applications, this tap is both versatile and effective.

Key Technical Specifications:
- Diameter (d1): 1/2"
- TPI: 12
- Limit Z3
- I1: 89mm
- I2: 29mm
- Diameter of the Shank (d2): 9mm
- Required Drill Size: 10.5mm
- Manufacturer Part No.: T4521270
- Brand: Sutton Tools

Upgrade your machining capabilities today with the Sutton Straight Flute Tap BSW Intermediate-1/2" (Each) available at Smartfox NZ. Discover the perfect blend of quality and performance, ensuring that every project is executed with precision. Shop now and experience how this tap can transform your tapping tasks into seamless operations.

Sutton Straight Flute Tap BSW Intermediate-1/2" (Each)

General purpose use
Suitable for materials up to 1000N/mm2
Through and blind holes
Suitable for both hand and machine operations

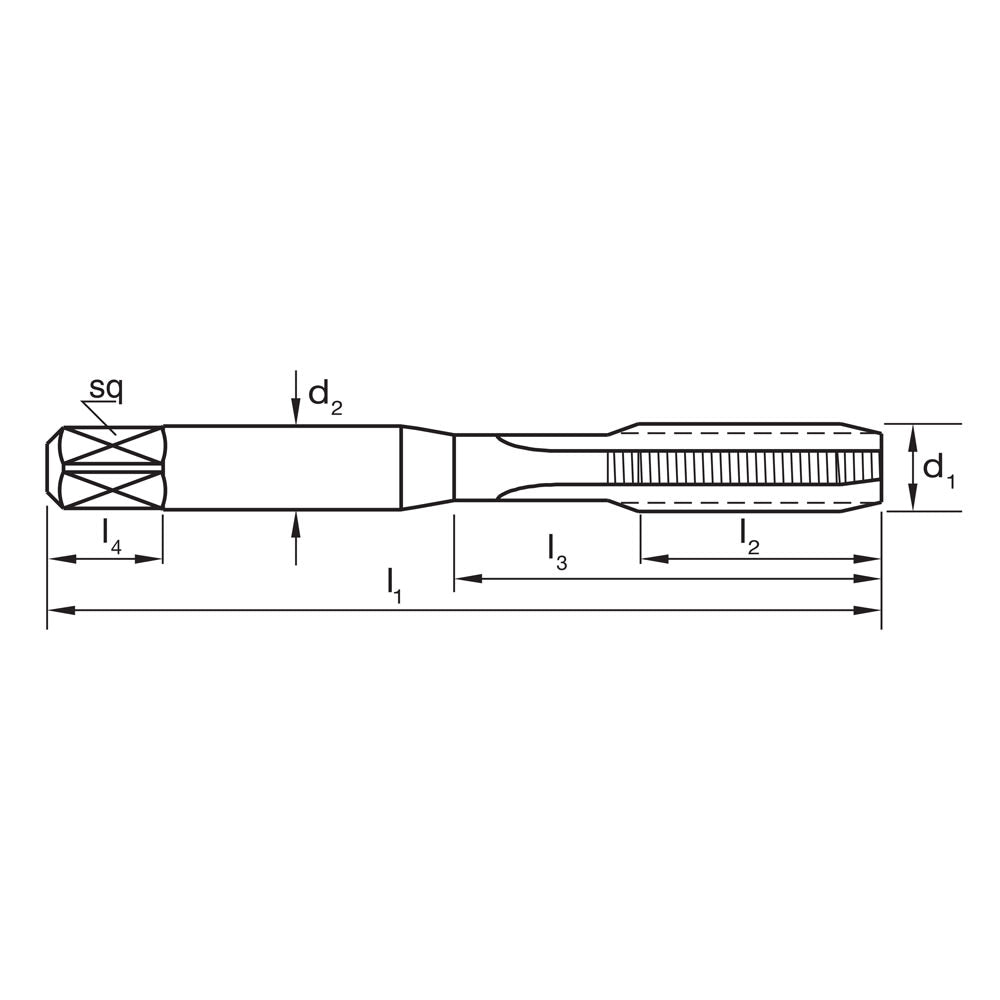

TECHNICAL SPECIFICATIONS
d1 1/2"
TPI (Tooth per inch) 12
Limit Z3
I1 89mm
I2 29mm
d2 9mm
Drill 10.5mm
Mfr Part No. T4521270
Brand Sutton Tools
