Description
** Please note this item may have a longer delivery time. For urgent orders please enquire about excepted dispatch date prior to purchasing **

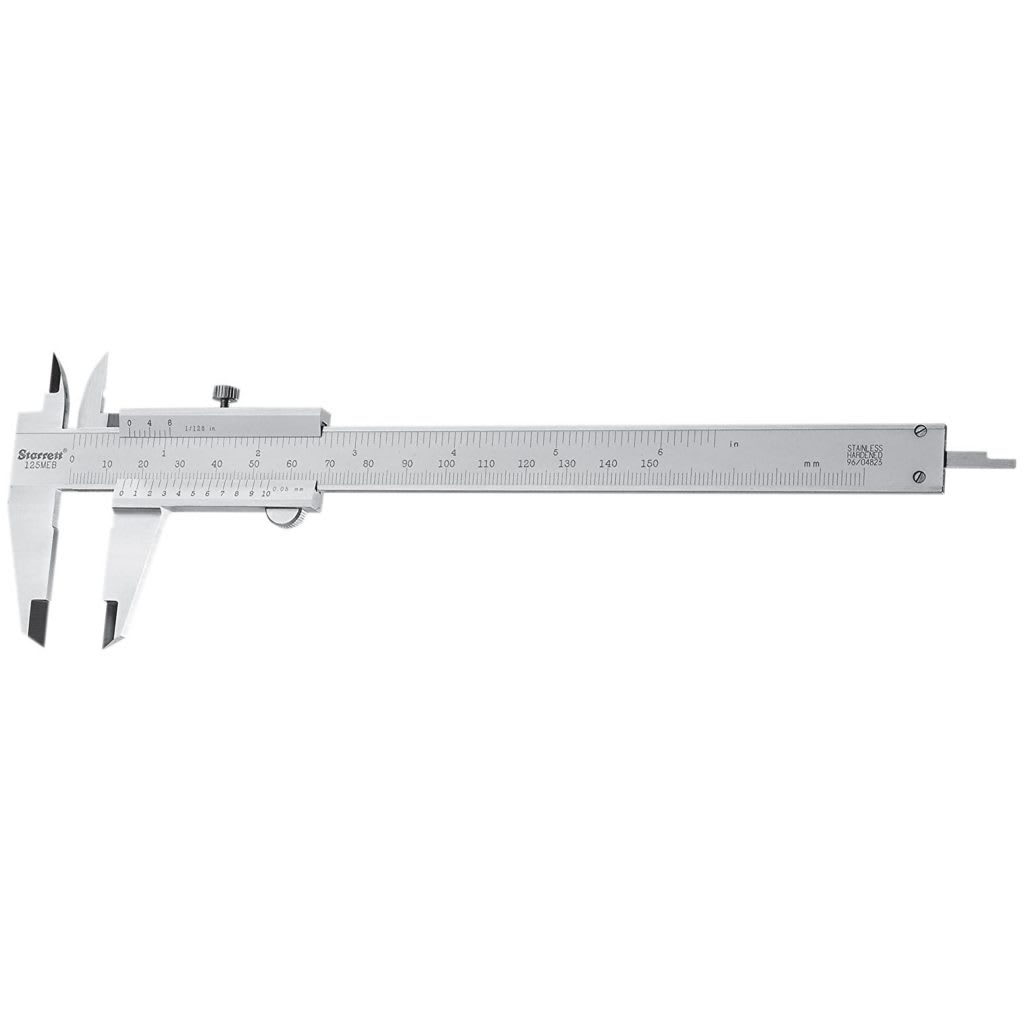

Long Range Vernier Caliper is an additional scale on a measuring device that lets the user read distance or angle measurement more accurately than could be done by reading a uniformly-divided straight or circular measurement scale. It is a sliding secondary scale that indicates where the measurement lies in between two of the marks on the main scale.
Lock screw for sliding jaw
Hardened stainless steel depth rod
Sharp, black graduations on the satin finished bar
TECHNICAL SPECIFICATIONS
Term / Description
Range 0 - 12" / 0 - 300mm
Graduations 0.001" / 0.02mm
Accuracy (in) 0 - 4": (+/- 0.001"); 4 - 12": (+/- 0.0015")
Accuracy (mm) +/- 0.025mm per 300mm
Mfr No. 125MEB-12/300
Long Range Vernier Caliper is an additional scale on a measuring device that lets the user read distance or angle measurement more accurately than could be done by reading a uniformly-divided straight or circular measurement scale. It is a sliding secondary scale that indicates where the measurement lies in between two of the marks on the main scale.
Lock screw for sliding jaw
Hardened stainless steel depth rod
Sharp, black graduations on the satin finished bar
TECHNICAL SPECIFICATIONS
Term / Description
Range 0 - 12" / 0 - 300mm
Graduations 0.001" / 0.02mm
Accuracy (in) 0 - 4": (+/- 0.001"); 4 - 12": (+/- 0.0015")
Accuracy (mm) +/- 0.025mm per 300mm
Mfr No. 125MEB-12/300
