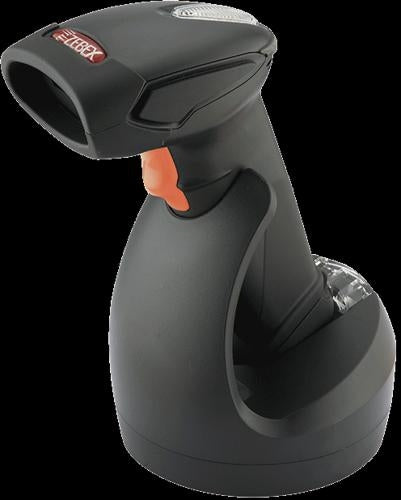

Zebex Z-3192BT Wireless Handheld Scanner 1D & 2D w/ Cradle

Z-3192 Series is the next generation rugged, gun-type 2D image readers built for tough environments. The new design optimizes functionality and toughness to offer the most complete package in performance and wear resistance. The powerful 2D image reader is perfect for working places that deal with mass information and require strict accuracy, such as healthcare, medical service and information kiosk.
Powerful image sensor yields advanced scanning performance
Ergonomic, rugged design
Support multiple code formats
Captures barcodes on mobile phone, tablet, or computer screens
Aiming Element
650 nm visible laser diode (VLD)

Illumination Element
625±5 nm red LED

Optical System
752H × 480V pixels (wide VGA); Global shutter

Depth of Field
PDF 417 (4.33 mil): 40 – 90 mm Code 39 (5 mil): 20 – 110 mm UPCA (13 mil): 45 – 170 mm PDF 417 (10 mil): 20– 120 mm

Field of View
38.4° horizontal; 24.9° vertical

Focusing Distance
7.4 cm

Sensitivity
360° (omnidirectional rotational sensitivity)

Print Contrast
30% @ UPC/EAN 100%

Indicator
Beeper and LED

Programmable Operation
Power mode, beeper tone & volume, focus control, image control, trigger mode

Image Format
BMP (.bmp), TIFF (.tif), JPEG (*.jpg)

System Interface
RS-232, USB1.1

Dimensions (H x W x L)
147.0 × 62.0 x 114.5 mm (device only)

Weight
200 g (cable excluded)
