SKU:
PR749079

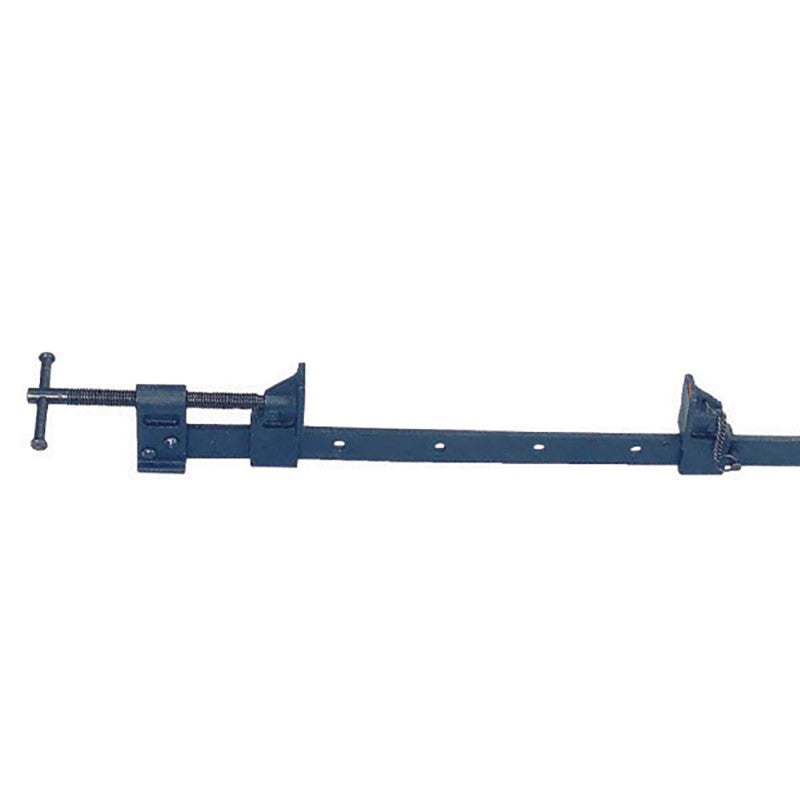

Groz Sash Clamp, Rectangular Section,1200mm Long 1050mm Cap.
$135.50
Unit price
/
Unavailable
This product is in stock in NZ which means no unexpected import charges, custom duty or tax. This product has FREE shipping however combined shipping for other products is not available with this item.
GZ39114 | Groz Sash Clamp Rectangular Section 1200mm Long 1050mm Cap. • Bar cramps are especially useful for clamping large section workpieces during fabrication gluing in joinery carpentry and boat building. • The bars are made from drawn steel with a section of 32mm x 6mm. Malleable iron head and slides provide rigidity and strength even under heavy tension. Both head and slide have a flat bottom allowing the bar to stand upright without support. • The head is fitted square to the bar with 1.5° to 2° taper for true parallel clamping action. • Main screw and handle are made from high-grade steel and have a blackened finish for increased resistance to corrosion. • The screw has rolled Acme threads that impart extra strength and are wear resistant. Specification • Bar Length: 1200mm • Clamp Capacity: 1050mm • Throat Depth: 50mm (2in) • Width of Clamp Face: 30mm (1-3/16”)
GZ39114 | Groz Sash Clamp Rectangular Section 1200mm Long 1050mm Cap. • Bar cramps are especially useful for clamping large section workpieces during fabrication gluing in joinery carpentry and boat building. • The bars are made from drawn steel with a section of 32mm x 6mm. Malleable iron head and slides provide rigidity and strength even under heavy tension. Both head and slide have a flat bottom allowing the bar to stand upright without support. • The head is fitted square to the bar with 1.5° to 2° taper for true parallel clamping action. • Main screw and handle are made from high-grade steel and have a blackened finish for increased resistance to corrosion. • The screw has rolled Acme threads that impart extra strength and are wear resistant. Specification • Bar Length: 1200mm • Clamp Capacity: 1050mm • Throat Depth: 50mm (2in) • Width of Clamp Face: 30mm (1-3/16”)
