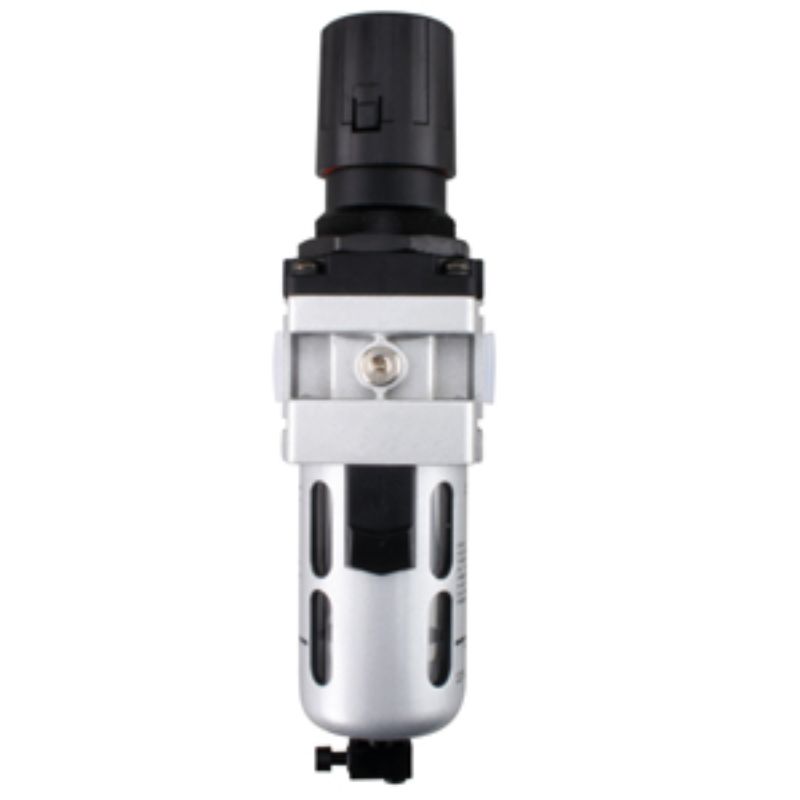

Groz 3/8in BSP F-R Unit 77CFM / 2200LPM

Introducing the Groz 3/8in BSP Filter-Regulator Combination Unit, a top-tier air preparation solution for professionals. Designed for optimal performance, this unit boasts a maximum flow rate of 77 CFM / 2200 LPM, fulfilling the demands of any compressed air system. The well-engineered design combines a high-efficiency air filter and precision pressure regulator into one compact unit, ensuring clean, moisture-free compressed air. The robust die-cast aluminum body houses a polycarbonate bowl with a steel bowl guard that protects against the rigors of industrial use.

Our advanced filtering technology incorporates a sintered bronze element, effectively separating dust, dirt, and moisture, while the built-in separating shield enhances moisture management. The regulator maintains a stable outlet pressure, unaffected by fluctuations in inlet pressure, providing reliable performance in various applications.

With an easy-to-use “Press to Lock” adjusting knob, operators can set and lock their desired pressure settings ranging from 7 to 145 PSI (0.5 - 10 BAR). The 40-micron filtering element ensures quality, while the manual drain feature ensures convenient maintenance, automatically draining the bowl once the air supply is switched off. This unit, conforming to ISO 6953-1 & 5782-1 standards, is built to last, utilizing high-quality wetted components including aluminium, bronze, brass, and stainless steel.

Shop confidently at Smartfox NZ, where this in-stock product means no surprise import charges, and enjoy FREE shipping on your order. Upgrade your air supply system with the Groz 3/8in BSP F-R Unit—efficiency and reliability in one powerful package.

GZ60310 - GROZ Air Filter-Regulator Combination Unit The Filter-Regulator Combination is one of the most popular air preparation units. The 2 are assembled together to form a single unit. Air Filter is used to separate dust dirt moisture & other contaminants from compressed air. Filter has a Die Cast Aluminium body polycarbonate bowl with a steel bowl guard & a high performance Sintered Bronze. Filtering element Filter is designed with a Separator & Shield for efficient moisture separation. It is combined with a Regulator which maintains a steady outlet pressure unaffected by variations/fluctuations in the inlet pressure. Regulators have a Non Raising "śPress to Lock"ť adjusting knob for locking at any set pressure .Regulators work on a Diaphragm operated relieving type mechanism with pressure compensated by balanced poppet.
Pressure adjustment range of 7 - 145 PSI (0.5 - 10 BAR)
40 micron filtering element
Press Type Manual Drain with Night Time Drain feature which automatically drains off the bowl once the compressed air supply to the filter is switched off. WETTED COMPONENTS: Aluminium Bronze Brass Steel Acetal Polycarbonate Stainless Steel & Nitrile FRC14 Type: INTERMEDIATE COMPLETE WITH 42MM GAUGE Max flow rate: 77 CFM / 2200 LPM Bayonet Type Steel Bowl Guard Regulator with in-built Venturi for Flow Compensation CONFORMS TO ISO 6953-1 & 5782-1 WARNING: Polycarbonate bowls may get damaged and possibly fail if exposed to synthetic oils thinner solvents trichloroethylene kerosene or other aromatic hydrocarbons.
