SKU:
PR706113
15% off

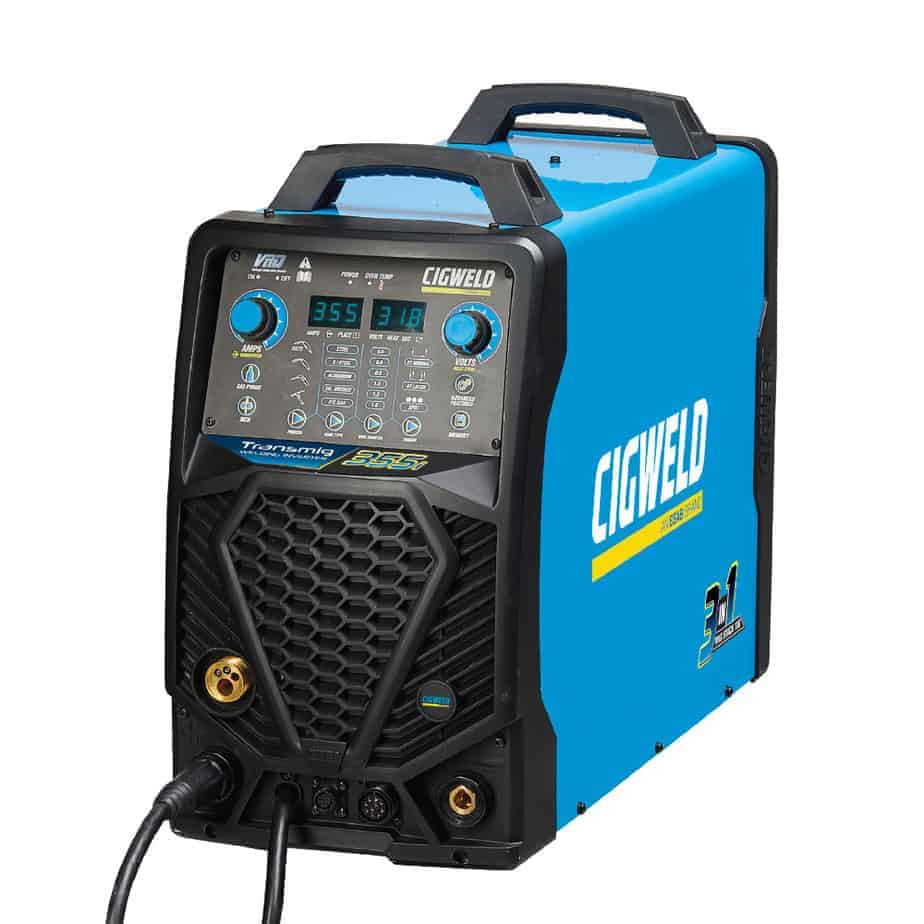

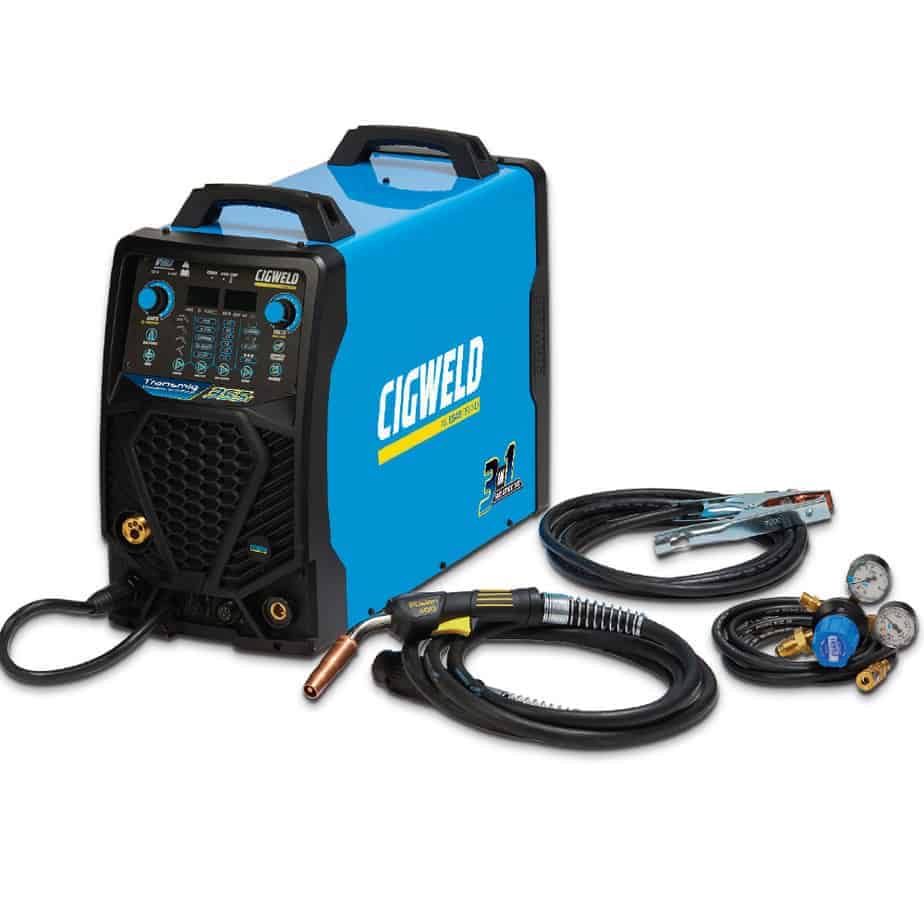

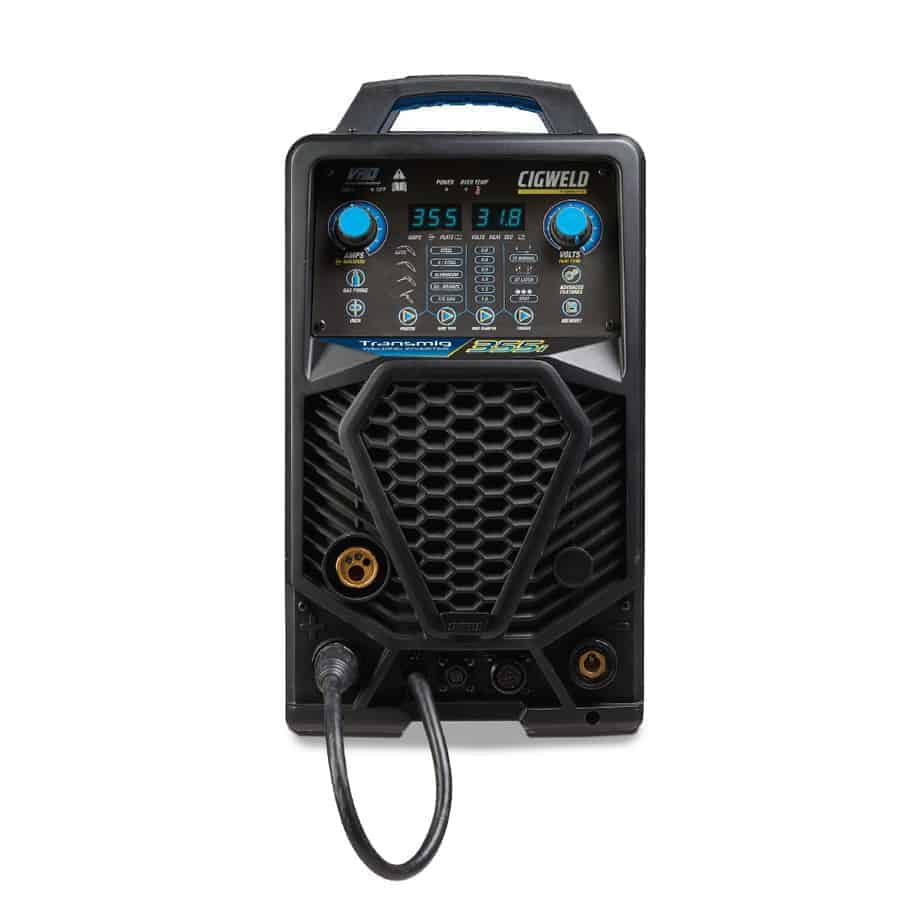

Cigweld Transmig 355i Multiprocess Welder (Each)
$10,362.35
$12,191.00
Unit price
/
Unavailable
** Please note this item may have a longer delivery time. For urgent orders please enquire about excepted dispatch date prior to purchasing **
Cigweld Transmig 355i Multiprocess Welder (Each)
CIGWELDs Transmig 355i is a powerful 3phase 3in1 MultiProcess Inverter that offers exceptional welding results across MIG, STICK and TIG that operates at 355A@60% Duty Cycle. The AUTO SET MIG Process has been pre-programmed with synergic lines determined by material type, thickness and consumable diameter to ensure you are always getting the best from your welds.
Push Button Interface Simple Push button displayfor easy navigation.
Memory Settings Save up to 15 of your favorite welds with Memory Settings.
Voltage Reduction Device Standards compliant STICK mode only.
Superior arc characteristics and duty cycle. Smooth, stable arc performance at 355A @ 60%.
Push Pull Gun Compatible - Transmig 355i is compatible with the CIGWELD TBI Push Pull Torch (185P958180) with Sync Box (590P958000).
Spool Gun Compatible - Transmig 355i is compatible with the Tweco SGT250 Spool Gun (W4011250)
Heat Trim - Customisable Heat Trim Function allows user to tweak voltage for optimal performance (in AUTO SET MIG only)
TECHNICAL SPECIFICATIONS
Mfr Part No
W1003511
Power Source Weight
45kg
Power Source Dimensions
700H x 287W x 517D mm
Welder Type
MIG, STICK, LIFT TIG, AutoSet MIG Inverter Power Source
MIG (GMAW) Welding Output, 40oC, 10 min.
355A @ 60%, 31.8V
STICK (MMAW) Welding Output, 40oC, 10 min.
355A @ 60%, 34.2V
TIG (GTAW) Welding Output, 40oC, 10 min.
355A @ 60%, 24.2V
Warranty
3 Year Limited Warranty
Cigweld Transmig 355i Multiprocess Welder (Each)
CIGWELDs Transmig 355i is a powerful 3phase 3in1 MultiProcess Inverter that offers exceptional welding results across MIG, STICK and TIG that operates at 355A@60% Duty Cycle. The AUTO SET MIG Process has been pre-programmed with synergic lines determined by material type, thickness and consumable diameter to ensure you are always getting the best from your welds.
Push Button Interface Simple Push button displayfor easy navigation.
Memory Settings Save up to 15 of your favorite welds with Memory Settings.
Voltage Reduction Device Standards compliant STICK mode only.
Superior arc characteristics and duty cycle. Smooth, stable arc performance at 355A @ 60%.
Push Pull Gun Compatible - Transmig 355i is compatible with the CIGWELD TBI Push Pull Torch (185P958180) with Sync Box (590P958000).
Spool Gun Compatible - Transmig 355i is compatible with the Tweco SGT250 Spool Gun (W4011250)
Heat Trim - Customisable Heat Trim Function allows user to tweak voltage for optimal performance (in AUTO SET MIG only)
TECHNICAL SPECIFICATIONS
Mfr Part No
W1003511
Power Source Weight
45kg
Power Source Dimensions
700H x 287W x 517D mm
Welder Type
MIG, STICK, LIFT TIG, AutoSet MIG Inverter Power Source
MIG (GMAW) Welding Output, 40oC, 10 min.
355A @ 60%, 31.8V
STICK (MMAW) Welding Output, 40oC, 10 min.
355A @ 60%, 34.2V
TIG (GTAW) Welding Output, 40oC, 10 min.
355A @ 60%, 24.2V
Warranty
3 Year Limited Warranty
