Description

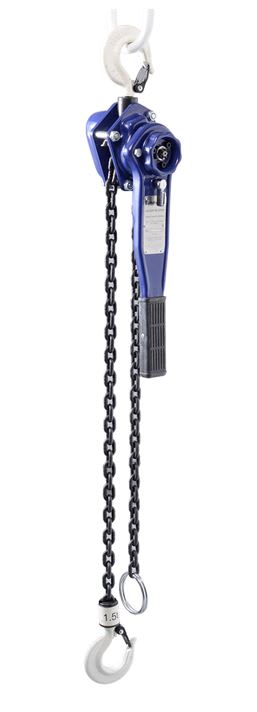

Bullivants Lever Blocks are manufactured from the highest quality materials and equipped with the latest technology. This compact design includes innovative features to improve operator safety by making the lever block safer and easier to use ensuring a long service life.
Design improvements result in 25% less operator effort to lift the rated load; than previous models
Key internal components including gearing and sprockets are CNC machined for improved overall product reliability and longer life
Load hooks with cast 'notched' safety latches increase service life of the latches and improve the safety of the lifting operation
Stainless Steel ID plates and rivets suitable for underground applications
Improved design of load sprockets for safer operation
Designed in accordance with EN 13157 and AS 1418.2
All Bullivants Lever Blocks are individually load tested in accordance with Australian Standards
Complies with AS 1418.2:1997
Supplied with test certificate
TECHNICAL SPECIFICATIONS
Rated Capacity 3.0 tonne
Lifting Height 1.5m
No. of Load Chain Falls 1
Load Chain Grade 80 10x28mm
Headroom 480mm
Design improvements result in 25% less operator effort to lift the rated load; than previous models
Key internal components including gearing and sprockets are CNC machined for improved overall product reliability and longer life
Load hooks with cast 'notched' safety latches increase service life of the latches and improve the safety of the lifting operation
Stainless Steel ID plates and rivets suitable for underground applications
Improved design of load sprockets for safer operation
Designed in accordance with EN 13157 and AS 1418.2
All Bullivants Lever Blocks are individually load tested in accordance with Australian Standards
Complies with AS 1418.2:1997
Supplied with test certificate
TECHNICAL SPECIFICATIONS
Rated Capacity 3.0 tonne
Lifting Height 1.5m
No. of Load Chain Falls 1
Load Chain Grade 80 10x28mm
Headroom 480mm
