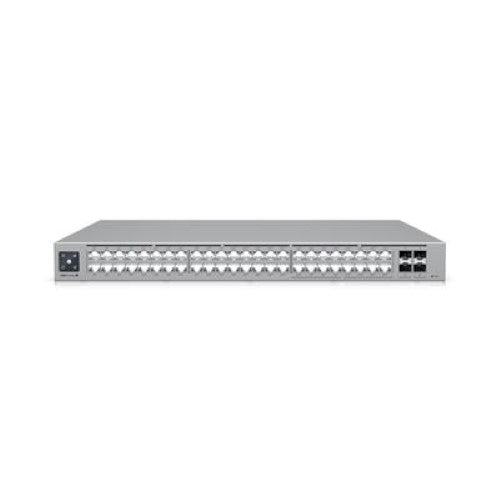

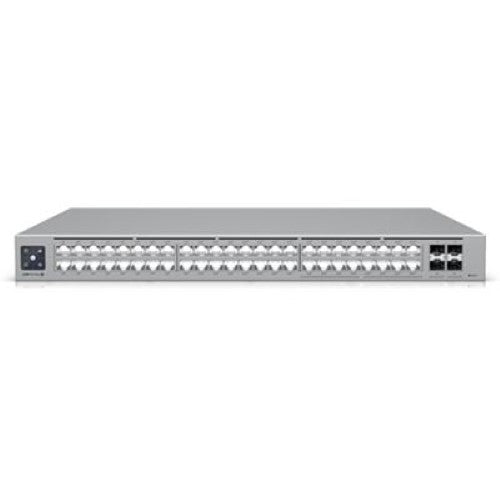

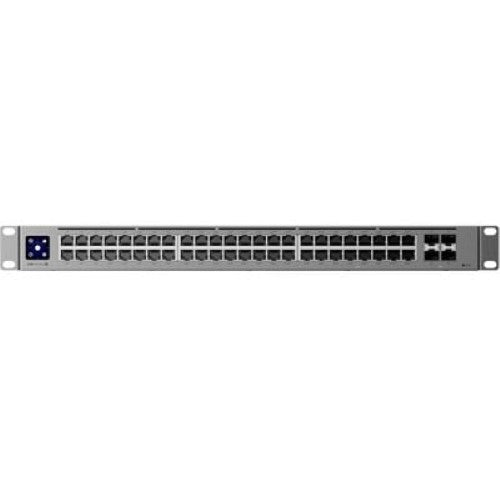

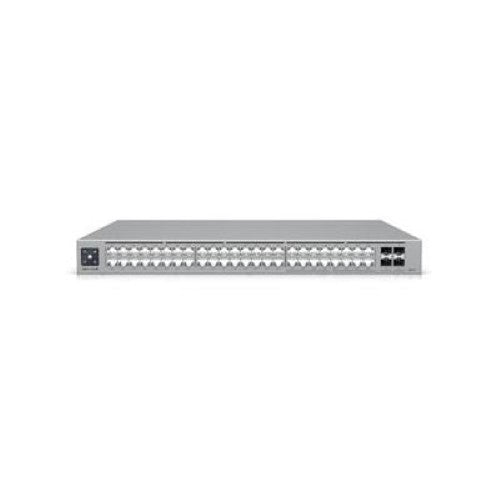

USW PRO MAX 48 POE

Ubiquiti UniFi Network | Switch | USW-Pro-Max-48-PoE | 48-Port | POE 720W | 16 2.5 GbE ports | 8 PoE+,8 PoE++ | 4 10G SFP+ Ports | Layer3 | Rack Mount (USW-PRO-MAX-48-POE)

OVERVIEW: Ubiquiti Pro Max 48 PoE - 48 Ports - 2.5 Gigabit Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet - 2.5GBase-T, 10/100/1000Base-T, 10GBase-X - 3 Layer Supported - Modular - 100 W Power Consumption - 720 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - 1U High - Rack-mountable

FEATURES
Quickly and easily set up a wired network with 48 networking ports
Supports layer 3 switching for enhanced performance and usability
Rack mounting enables you to organize wires & secure cables for professional installation
Supports optical fibre cable to span longer distances and provided high data transmission rates between servers and network components

SPECS
Dimensions & weight
Weight
6.20 kg, 6.20 kg
Display & graphics
Display depth
400 mm
Display height
44 mm
Display width
442.4 mm
Networking & connectivity
Ethernet
Yes
Ethernet ports
48
Ethernet technology
10 Gigabit Ethernet, 2.5 Gigabit Ethernet, Gigabit Ethernet
Media type
Optical Fiber, Twisted Pair
Network layer
3
Network technology
10/100/1000Base-T, 10GBase-X, 2.5GBase-T
PoE support
Yes
Ports
24 x Gigabit Ethernet PoE+
Power, battery & charging
Input voltage
120 V AC, 230 V AC
Power consumption (Max)
100 W
Power source
AC/DC
Exterior & appearance
Form factor
Rack-mountable
Material
Galvanized Cold Rolled Steel (SGCC)
Product info
Brand
Ubiquiti
Product line
Pro Max
Product name
Pro Max 48 PoE
Product type
Layer 3 Switch
Vendor
Ubiquiti Inc.
Vendor code
USWPROMAX48POE
Vendor site
ui.com
Product family
Ubiquiti Pro Max
