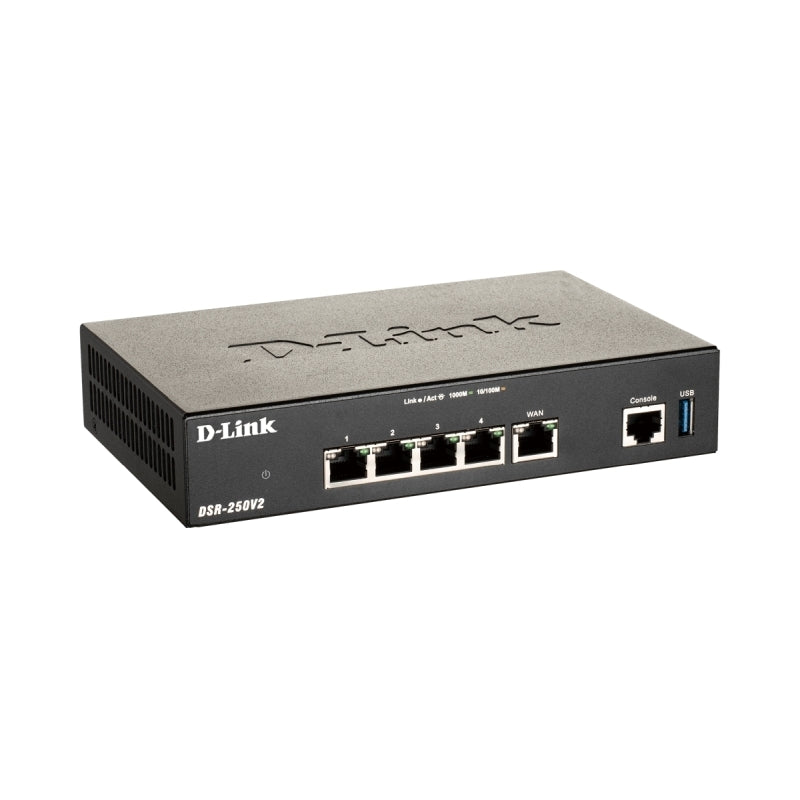

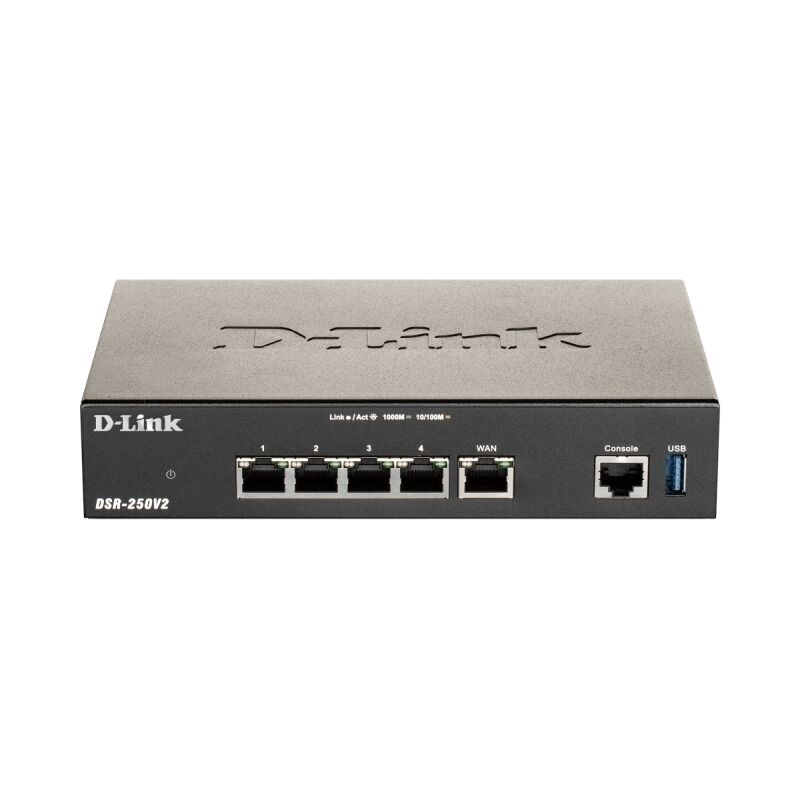

D-Link Unif Serv VPN Router

Specifications:

• Ethernet Interface: 1 x 10/100/1000 Mbps WAN port | 3 x 10/100/1000 Mbps LAN ports | 1 x 10/100/1000 Mbps configurable port


• USB Port: 1 x USB 3.0


• Console Port: RJ-45


• Firewall Throughput: 950 Mbps


• VPN Throughput (3DES): 200 Mbps


• Concurrent Sessions: 50000


• New Sessions (per second): 2000


• Firewall Policies: 300


• Static/Dynamic IP: Yes


• Static Route: Yes


• Dynamic Route: RIP v1/v2 / OSPF / OSPFv3


• Authentication: Internal User Database / Radius / POP3 / LDAP / AD / NT Domain


• DHCP Server/Client: 1024 clients


• DHCP Relay: Yes


• IEEE 802.11q VLAN: Yes


• Number of VLANs: 16


• IP Multicast: IGMP Proxy / IGMP Snooping


• IPv6: Yes


• Route Failover: Yes


• VPN Tunnels: 75


• IPsec Tunnel: 50


• PPTP/L2TP Tunnels: 30


• GRE: 20


• OpenVPN Tunnels: 20


• SSL Encryption Methods: RC4-128 / 3DES / AES


• Encryption Methods: DES / 3DES / AES / Twofish / Blowfish / CAST-128 / NULL


• Priority Bandwidth Control: Low/Medium/High


• Web-based User Interface: Yes


• SNMP: v1 / v2c / v3


• Power Supply: External Power Supply Unit DC 12 V/1.5 A


• Max Power Consumption: 8.603 W/ 14.4 W


• Dimensions (L x W x H): 190 x 120 x 38 mm

Features:

• Automatic failover to another link from available ISP when primary line is lost.


• Support 1 x GE WAN 3 x GE LAN 1 GE Configurable LAN/WAN and 1 x USB 3.0 port.


• 900/200 Mbps firewall/VPN throughput 50000 Concurrent Sessions and 50/20 IPsec/SSL VPN Tunnels.


• Advanced routing VLAN and IPsec/PPTP/L2TP/OpenVPN VPN Server/Client


• Value-added office utilities to reduce OpEx/CAPEX


• Traffic load balancing and Avoid complicated maintenance issues
