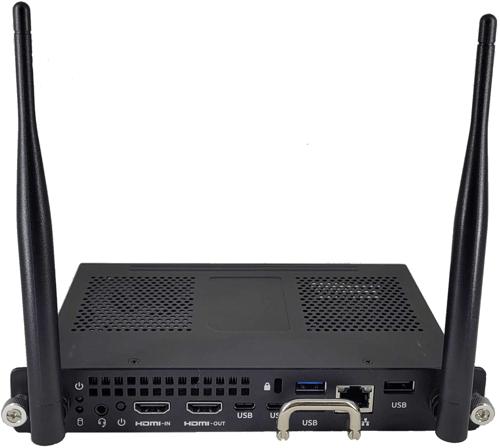

SMART OPS PC i7 (W11 Pro) - 13th Gen

SMART Open Pluggable Specification (OPS) PC modules provide a hassle-free Windows® 11 Pro installation based on 13th generation Intel® Core® processors and are designed specifically to work with SMART Board® interactive displays. Available in three standard configurations, all OPS PC modules in the PCM13 series are WHQL (Windows Hardware Quality Labs) certified and fully licensed with Windows 11 Pro out of the box. Install the OPS PC module in a SMART Board interactive display’s OPS slot to provide a complete 4K UHD Windows 11 installation at your fingertips, without the need for an external device or additional cables. Install familiar Windows software applications, such as SMART Notebook® collaborative learning software, SMART TeamWorks™ visual collaboration software, and SMART Meeting Pro® software, and access the internet directly through your existing interactive display’s network connection. Upgrades and service for the OPS PC module are easy to perform without removing the interactive display from its mounting.



Processor
Intel Core i7 1365U vPro™

Memory
16GB (2x 8GB)

Storage
256GB M.2 NVMe SSD

Graphics
Intel Iris Xe Graphics

4K UHD video
Yes, Full 4K UHD, 60 Hz

Operating System
Windows 11 Pro, Full license

LAN
Gigabit Ethernet Intel I219 vPro

Wireless
Intel Wireless (2.4 GHz/5 GHz/6 GHz/BT) IEEE 802.11ax (Wi-Fi 6e) Bluetooth® 5.3

TPM
Trusted Platform Module 2.0

Operating Temperature
0–40°C

Humidity
10–90% relative humidity, non-condensing

Maximum Power Consumption
77 W

Inputs & Outputs
1x 3.5mm Audio, 1x HDMI, 1x HDMI Out, 2x USB Type-C w/ 15W PD, 2x USB 3.2 Gen 1 Type-A, 1x RJ45, 2x USB 2.0 Type-A

Dimensions
20 cm × 14 cm × 3 cm

Weight
750g
