Description
Model: DUCMI170IHB

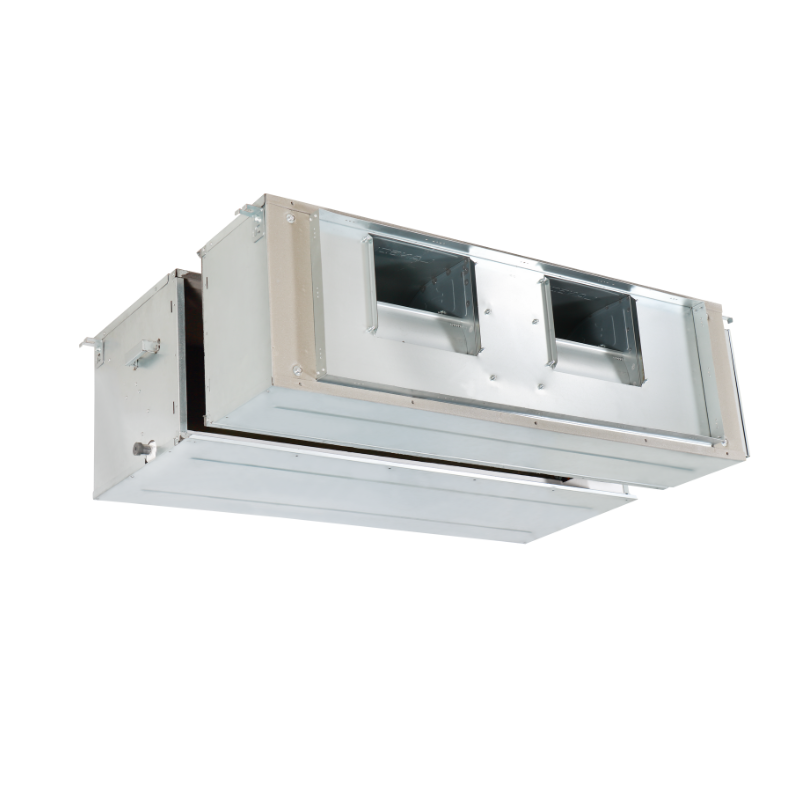

High Static Pressure Duct
(10.5kw/12kw/14kw/17kw):
Outstanding Features Comfort

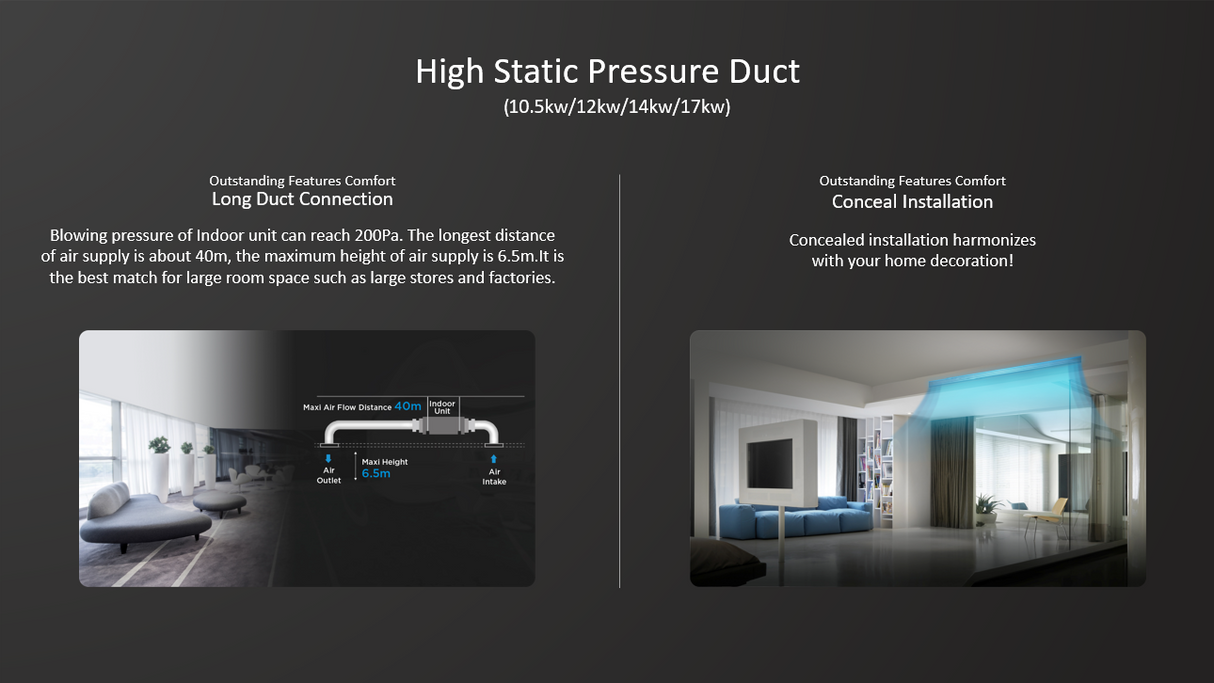

Long Duct Connection:
Blowing pressure of Indoor unit can reach 200Pa. The longest distance of air supply is about 40m, the maximum height of air supply is 6.5m. It is
the best match for large room space such as large stores and factories.
Outstanding Features Comfort
Conceal Installation:
Concealed installation harmonizes with your home decoration.
Capacity (kW): 17.0 kW Cooling/17.5 kW Heating
Rated Power Input: 7.0 kW
Power Supply: 220-240V / 50Hz / 1 Ph
Indoor Air Flow (Hi/Mi/Lo) (m3/h): 3800/3000/2285
Indoor Dimension (WxDxH): 1400 x 858 x 440(mm)
Indoor packing dimension(WxDxH): 1605 x 910 x 515 (mm)
Indoor Net/Gross Weight: 81.1/ 91.6 kg
Indoor Sound Power Level: 66 dB(A)
Outdoor Air Flow(m3/h): 7600
Outdoor Dimension (WxDxH): 952 x 415 x 1333 (mm)
Outdoor packing dimension(WxDxH): 1095 x?495 x 1480 (mm)
Outdoor Net/Gross Weight: 95.8/110 kg
Outdoor Sound Power Level: 72.0dB(A)
High Static Pressure Duct
(10.5kw/12kw/14kw/17kw):
Outstanding Features Comfort
Long Duct Connection:
Blowing pressure of Indoor unit can reach 200Pa. The longest distance of air supply is about 40m, the maximum height of air supply is 6.5m. It is
the best match for large room space such as large stores and factories.
Outstanding Features Comfort
Conceal Installation:
Concealed installation harmonizes with your home decoration.
Capacity (kW): 17.0 kW Cooling/17.5 kW Heating
Rated Power Input: 7.0 kW
Power Supply: 220-240V / 50Hz / 1 Ph
Indoor Air Flow (Hi/Mi/Lo) (m3/h): 3800/3000/2285
Indoor Dimension (WxDxH): 1400 x 858 x 440(mm)
Indoor packing dimension(WxDxH): 1605 x 910 x 515 (mm)
Indoor Net/Gross Weight: 81.1/ 91.6 kg
Indoor Sound Power Level: 66 dB(A)
Outdoor Air Flow(m3/h): 7600
Outdoor Dimension (WxDxH): 952 x 415 x 1333 (mm)
Outdoor packing dimension(WxDxH): 1095 x?495 x 1480 (mm)
Outdoor Net/Gross Weight: 95.8/110 kg
Outdoor Sound Power Level: 72.0dB(A)
