Description

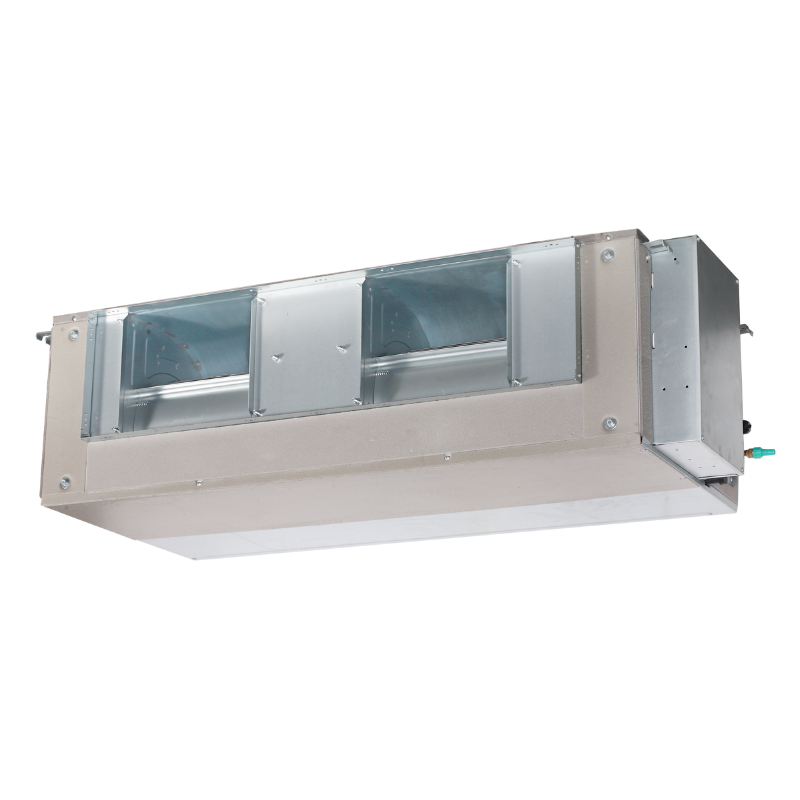

Model: DUCMI105IHB
High Static Pressure Duct
(10.5kw/12kw/14kw/17kw):
Outstanding Features Comfort
Long Duct Connection:
Blowing pressure of Indoor unit can reach 200Pa. The longest distance of air supply is about 40m, the maximum height of air supply is 6.5m. It is
the best match for large room space such as large stores and factories.
Outstanding Features Comfort
Conceal Installation:
Concealed installation harmonizes with your home decoration.
Constant Air Volume Control:
With constant air volume control technology,
optimal air flow cools every room consistently and accurately with both short pipes and long pipes.
Capacity (kW): 10.0 kW Cooling/11.0 kW Heating
Rated Power Input: 4.6 kW
Power Supply: 220-240V / 50Hz / 1 Ph
Indoor Air Flow (Hi/Mi/Lo) (m3/h): 2357/1753/1198
Indoor Dimension (WxDxH): 1200 x 625 x 380(mm)
Indoor packing dimension(WxDxH): 1485 x 675 x 460(mm)
Indoor Net/Gross Weight: 54/62 kg
Indoor Sound Power Level: 60.5 dB(A)
Outdoor Air Flow(m3/h): 5000
Outdoor Dimension (WxDxH): 946 x 410 x 810(mm)
Outdoor packing dimension(WxDxH): 1090 x 500 x 885(mm)
Outdoor Net/Gross Weight: 70.1/ 74.5 kg
Outdoor Sound Power Level: 68dB(A)
Constant Air Volume Control:
With constant air volume control technology,
optimal air flow cools every room consistently and accurately with both short pipes and long pipes.
High Static Pressure Duct
(10.5kw/12kw/14kw/17kw):
Outstanding Features Comfort
Long Duct Connection:
Blowing pressure of Indoor unit can reach 200Pa. The longest distance of air supply is about 40m, the maximum height of air supply is 6.5m. It is
the best match for large room space such as large stores and factories.
Outstanding Features Comfort
Conceal Installation:
Concealed installation harmonizes with your home decoration.
Constant Air Volume Control:
With constant air volume control technology,
optimal air flow cools every room consistently and accurately with both short pipes and long pipes.
Capacity (kW): 10.0 kW Cooling/11.0 kW Heating
Rated Power Input: 4.6 kW
Power Supply: 220-240V / 50Hz / 1 Ph
Indoor Air Flow (Hi/Mi/Lo) (m3/h): 2357/1753/1198
Indoor Dimension (WxDxH): 1200 x 625 x 380(mm)
Indoor packing dimension(WxDxH): 1485 x 675 x 460(mm)
Indoor Net/Gross Weight: 54/62 kg
Indoor Sound Power Level: 60.5 dB(A)
Outdoor Air Flow(m3/h): 5000
Outdoor Dimension (WxDxH): 946 x 410 x 810(mm)
Outdoor packing dimension(WxDxH): 1090 x 500 x 885(mm)
Outdoor Net/Gross Weight: 70.1/ 74.5 kg
Outdoor Sound Power Level: 68dB(A)
Constant Air Volume Control:
With constant air volume control technology,
optimal air flow cools every room consistently and accurately with both short pipes and long pipes.
